Setting up Database Mail for SQL Server

By:   |   Comments (35)   |   Related: 1 | 2 | 3 | > Database Mail


Problem

Many things have changed starting with SQL Server 2005 and one of these changes is the replacement of SQL Mail with Database Mail.  This is a good thing, because SQL Mail relied on having a MAPI mail client installed such as Outlook in order for it to work.  With SQL Server 2005 and later this has changed and now the mail services use an SMTP server to send out emails which makes it a whole lot easier to setup and maintain.  So how do you setup Database Mail for SQL Server 2005 and later?

Solution

There are two ways that you can setup Database Mail, either by using the stored procedures that are included with SQL Server or by using SQL Server Management Studio.  For this exercise we will walk through how to setup Database Mail by using the GUI.

To setup Database Mail, connect to your server and expand the Management node of the tree and then right click on "Database Mail".

configure database mail from ssms

Then select "Configure Database Mail' and you will get the following welcome screen and the click "Next".

database mail wizard

The following screen will appear and select "Set up Database Mail by performing..." and click "Next".

database mail select configuration task

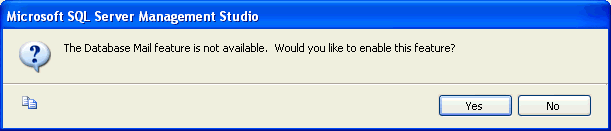

If Database Mail has not been enabled, you will get this following screen. Just click "Yes" to enable it.  If it has already been enabled this screen will not appear.

enable database mail features

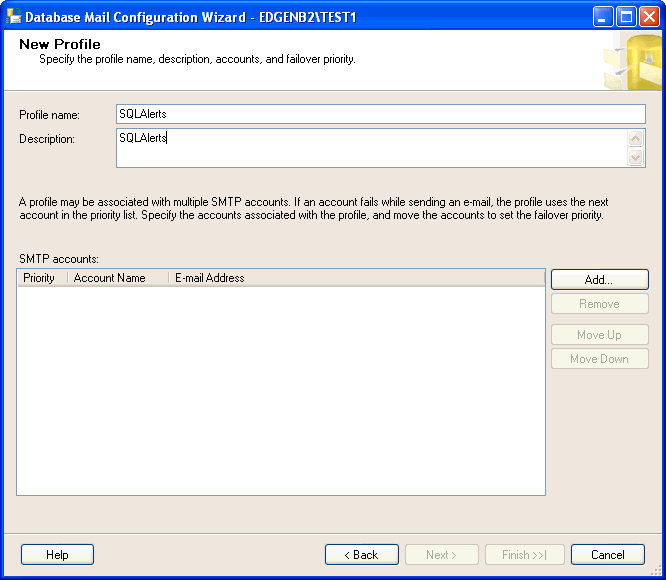

Enter in a name for the Profile and also a description and click "Add..."

database mail new profile

The following screen will appear.  Fill out the details for your mail account that will be used to send out email from SQL Server.  When you are done click "OK".

database mail new database mail account

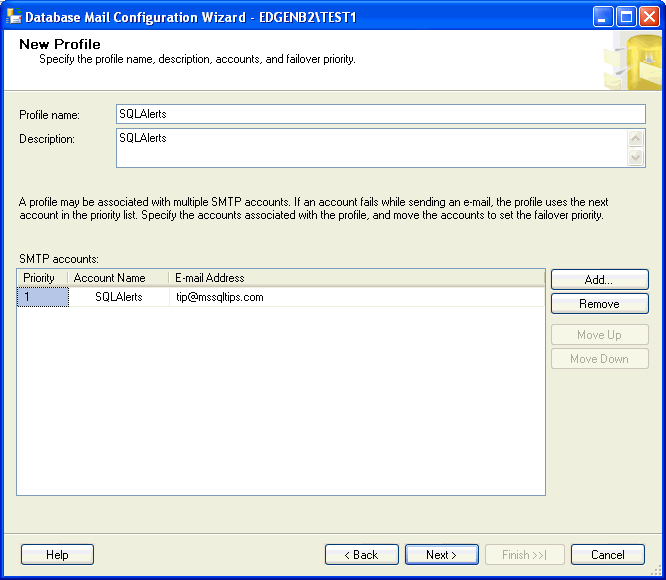

After you click "OK" you will be brought back to this screen and the SMTP details will now show for the account you just setup.  Click "Next" to continue.

database mail new profile

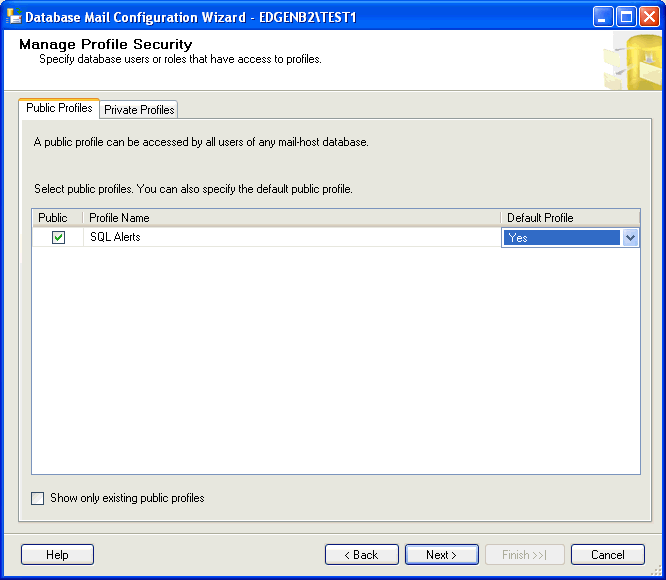

On the next screen you will see the name of the profile that you just setup.  Click on the checkbox to allow this to be a Public profile and also select "Yes" for the default profile and then click "Next".

database mail manage profile security

The following screen has some additional parameters that can be set to control how mail is sent.  You can make changes or leave the defaults.  When you are done click "Next".

database mail configure system parameters

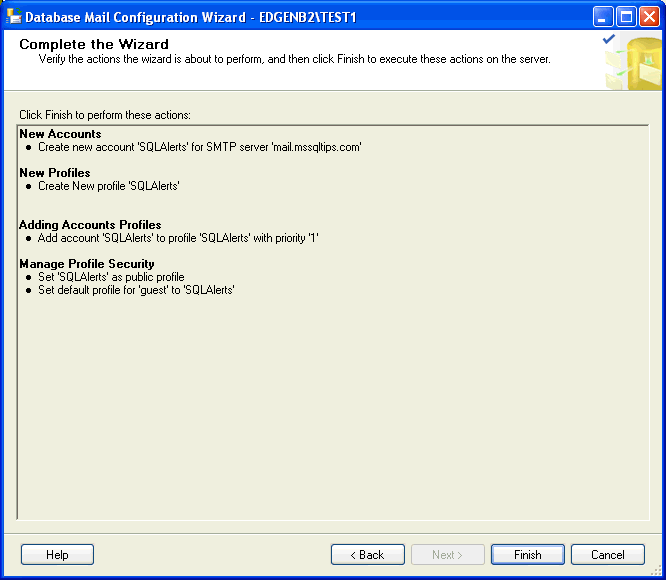

A summary screen will appear that shows you all of the options that were selected.  If everything is correct click "Finish" or click "Back" to go back and make changes.

database mail complete the wizard

When you click "'Finish" the next screen will appear that shows you the status of installing Database Mail. When this has finished just click "Close" to close this screen.

database mail configuration success

To test Database Mail, right click on Database Mail and select "Send Test E-Mail".

database mail send test email

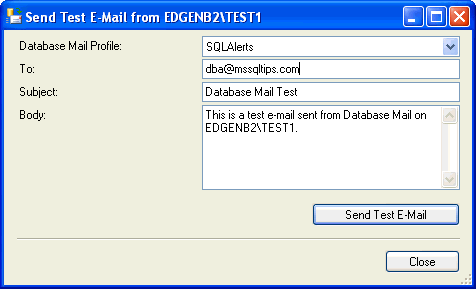

Fill in a "To:" email address and change the body of the email if you want and then click "Send Test E-Mail".

database mail send test email

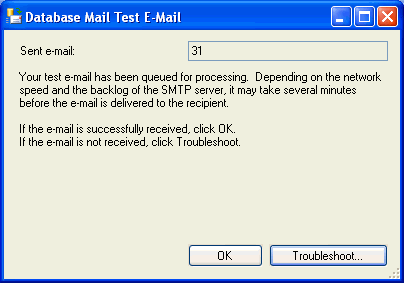

After you have sent the email you will get this message box to confirm if the email was received or not.  If it was you can click "OK" to close the screen or click "Troubleshoot" which will launch the help information to see what the issue may be and how it can be resolved.

database mail check test email send

That's all there is to it.  As I mentioned before this can also be setup by using stored procedures. To look at this approach take a look at this article Database Mail in SQL Server.

Next Steps
  • Setting up Database Mail is not that complicated and it is much easier then SQL Mail. Take the time to see how this new approach to mail can work in your environment
  • After you setup Database Mail don't forget to setup your operators, alerts and SQL Agent alert settings
