Importing SQL Server Data Using SSIS - Which Option is Fastest


By:   |   Last Updated: 2012-07-13   |   Comments (28)   |   Related Tips: More > Integration Services Development

Problem

This article is useful for SSIS developers who do not know which tasks are best to use in an SSIS projects. The main problem is that at the end of development if performance is slow then you will need to rebuild the project and change components. This article shows various ways of importing data and shows which types of components perform best within SSIS. The contest will be between the following components:

  • ODBC Tasks
  • ADO NET Tasks
  • OLEDB Task
  • SQL Server Destination
  • T-SQL Tasks
Solution

I created different SSIS packages in order to test performance. In this demo I used SSIS 2012 and the database Adventureworks 2012.

In this demo I am going to import the table [AdventureWorks2012].[Sales].[SalesOrderDetail] to the test2 database which is on the same instance of SQL Server. SalesOrderDetails is the table with more rows in AdventureWorks2012.

In order to create the database test2 and the destination table dbo.OrderDetails, use this T-SQL code:

CREATE DATABASE Test2
GO
USE Test2
GO
CREATE TABLE [dbo].[OrderDetails](
 [SalesOrderID] [int] NULL,
 [SalesOrderDetailID] [int] NULL,
 [CarrierTrackingNumber] [nvarchar](25) NULL,
 [OrderQty] [smallint] NULL,
 [ProductID] [int] NULL,
 [SpecialOfferID] [int] NULL,
 [UnitPrice] [money] NULL,
 [UnitPriceDiscount] [money] NULL,
 [LineTotal] [numeric](38, 6) NULL,
 [rowguid] [uniqueidentifier] NULL,
 [ModifiedDate] [datetime] NULL
) ON [PRIMARY]


Test 1 - ODBC Tasks

The first example will use ODBC Source and ODBC Destination as shown below:

the ODBC Source and the ODBC Destination

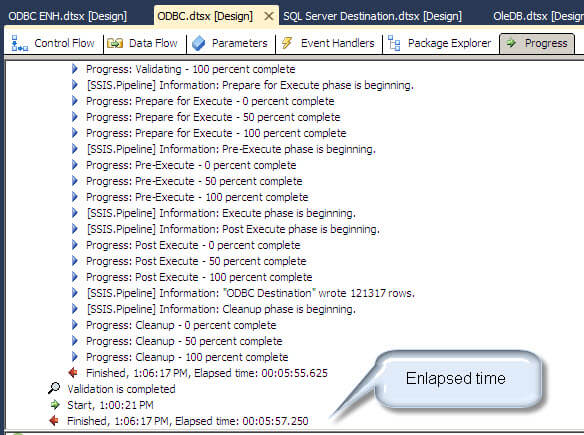

When we run the package we notice the average time is 5 minutes 57 seconds to import the rows:

it takes 5 minutes 57 seconds to import the rows

Test 2 - ADO NET Tasks

As noticed, ODBC is pretty slow. Let's try another approach. We are going to truncate the destination table first:

TRUNCATE TABLE test2.dbo.OrderDetails


Let's try ADO tasks to import the same data and verify if these components are faster:

ADO tasks

The average elapsed time in my testing was 11 seconds. This is much better.

Test 3 - OLEDB Tasks

This time we are going to import the same data using the OLEDB Tasks. Again we will truncate the table in the test2 database first.

OLEDB tasks

The average elapsed time is 5 seconds.

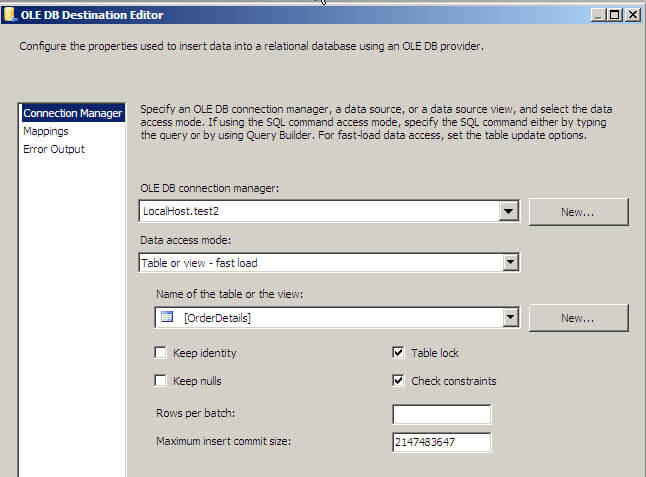

Note that I am using the "fast load" option with the "Table Lock" option in the OLE DB Destination Task:

I am using the fast load option with the tablelock option in the OLE DB Destination Task

If we do not use the fast load option, the average elapsed time was 2 minutes and 21 seconds:

If we do not use the fast load option, the elapsed time would be 2 minutes and 21 seconds

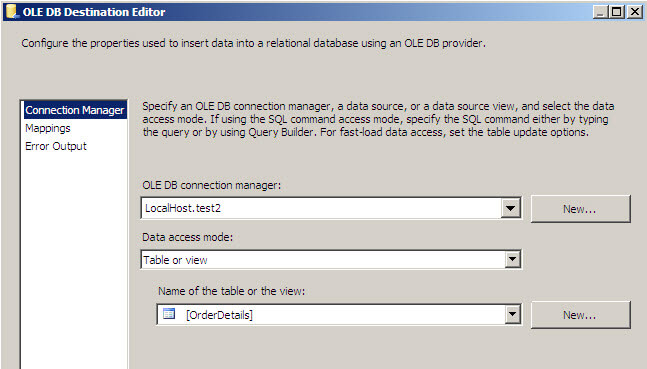

OK. The fast load option really improves performance. I will return to that configuration. What about the OLE DB Source. By default I am using the option "Table or view" in the OLE DB Source as shown below:

OLE DB Table or view

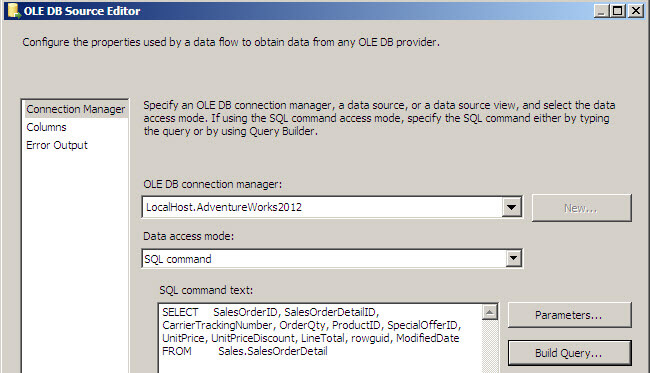

Let's use a "SQL Command" instead as shown below.

SQL Command

The average elapsed time is 2.85 seconds.

Test 4 - SQL Server Destination

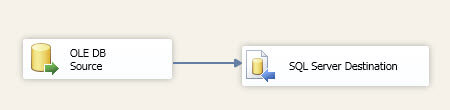

Now, let's try to use the SQL Destination as the destination instead of OLE DB Destination:

SQL Destination

The average elapsed time is 2.5 seconds.  At this point it is the best option.

Test 5 - Execute T-SQL Task

Finally, some people think that the best option is to use the Execute T-SQL Task:

T-SQL

I am using a simple insert statement to import data from one source to another:

USE [TEST2]
GO
INSERT INTO [dbo].[OrderDetails]
     ([SalesOrderID]
     ,[CarrierTrackingNumber]
     ,[OrderQty]
     ,[ProductID]
     ,[SpecialOfferID]
     ,[UnitPrice]
     ,[UnitPriceDiscount]
     ,[rowguid]
     ,[ModifiedDate])
SELECT
     [SalesOrderID]
     ,[CarrierTrackingNumber]
     ,[OrderQty]
     ,[ProductID]
     ,[SpecialOfferID]
     ,[UnitPrice]
     ,[UnitPriceDiscount]
     ,[rowguid]
     ,[ModifiedDate]
FROM [AdventureWorks2012].[Sales].[SalesOrderDetail]


The average elapsed time is 1.8 seconds!

Finally I've been told that if the query runs inside a stored procedure it is even faster:

Let's create a stored procedure:

 CREATE PROCEDURE insertOrderDetails
as INSERT INTO [dbo].[OrderDetails]
([SalesOrderID]
,[CarrierTrackingNumber]
,[OrderQty]
,[ProductID]
,[SpecialOfferID]
,[UnitPrice]
,[UnitPriceDiscount]
,[rowguid]
,[ModifiedDate]) SELECT
[SalesOrderID]
,[CarrierTrackingNumber]
,[OrderQty]
,[ProductID]
,[SpecialOfferID]
,[UnitPrice]
,[UnitPriceDiscount]
,[rowguid]
,[ModifiedDate]
FROM [AdventureWorks2012].[Sales].[SalesOrderDetail]

After creating the stored procedure we are going to call it in the Execute T-SQL Task:

T-SQL properties

The average elapsed time is 2.12 seconds. The stored procedures does not improve performance.

Summary

Let's review the table with the results:

Position

Time in seconds

ODBC Tasks 357
ADO Tasks 11
OLEDB 2.85
OLEDB, SQL destination 2.5
T-SQL 1.8

The winner is: T-SQL

You may think the moral of the story is to use the Execute T-SQL Task instead of other SSIS tasks.  In this example we were importing data on the same instance, but this will not always be the case.

So the moral of the story is that there are many alternatives when creating a SSIS project and we have to carefully study the alternatives in different scenarios. There are great SSIS tools and we do not always use the best options. With each new version of SSIS new tasks are added and performance may be improved with existing tasks. The main changes in SSIS for SQL 2008 and 2012 are related to performance improvements.

Next Steps

 If you are working in a SSIS project make sure you are using the best tasks and also verify if there are other SSIS tasks that can be used in your project.

Also make sure you are following the best practices recommended by the experts:
