Problem

If you're like any other DBA or developer in the world, writing sound T-SQL code and performance tuning is one of your primary duties. There are many tools, both native to SQL Server and third-party, that assist you in this endeavor.  But in thinking about writing and tuning queries, what should the focus be? For many, the length of time taken to execute the query is "good enough". One focus should be on the resources used by the server, since the length of time taken to execute the query can vary based on other server activity. In addition to using Profiler and Execution Plans, consider using SET STATISTICS IO and SET STATISTICS TIME.

Solution

SET STATISTICS IO and SET STATISTICS TIME are two settings that can help you measure the absolute resources needed by a server during query execution. SET STATISTICS IO displays statistics on the amount of disk activity generated by the query. SET STATISTICS TIME displays the amount of time needed to parse, compile, and execute each statement in the query. By writing a query a few different ways you can compare the statistics and determine the best statement to deploy to production.

Turning these settings on can be done one of two ways. First this can be done by using the SET commands to turn on and off these options or you can turn these options on and off by using the option settings in Query Analyzer.

Before you run the commands you need to turn on these settings and then issue your SQL statements. In addition, once these are turned on you will get these statistics for all queries for the current session you are working in until you have turned these settings off.

SET STATISTICS IO

Here is an example of turning the STATISTICS IO on and off.

-- turn on statistics IO
SET STATISTICS IO ON
GO -- your query goes here
SELECT * FROM Employee
GO
-- turn off statistics IO
SET STATISTICS IO OFF
GO

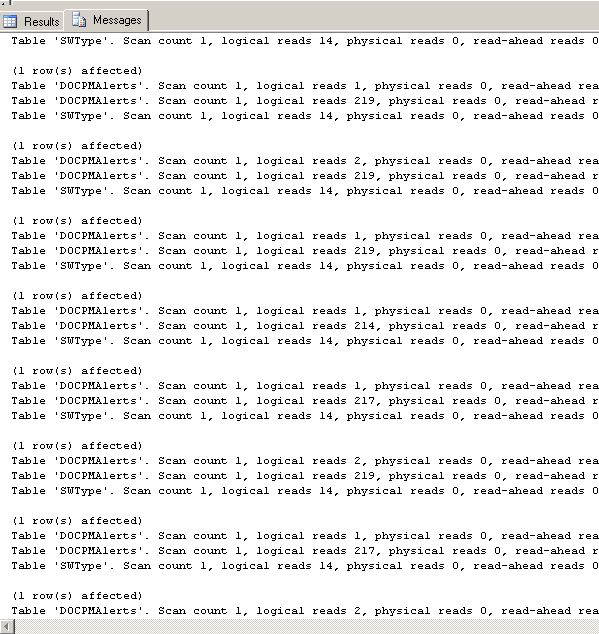

Here is an example of the output with SET STATISTICS IO turned on (the query statement evaluated is a cursor). From this we can see that there are several iterations for each time the cursor loops through the data.  Each of these shows how many pages are accessed for each process that SQL Server executes.

results

SET STATISTICS TIME

Here is an example of turning the STATISTICS TIME on and off.

-- turn on statistics IO
SET STATISTICS TIME ON
GO -- your query goes here
SELECT * FROM Employee
GO
-- turn off statistics IO
SET STATISTICS TIME OFF
GO

Here is an example of the output with SET STATISTICS TIME turned on. This output shows the time in milliseconds for each operation to complete.  These times could vary depending on when this is run, the load on the system as well as the size of the data set.

execution times

SET STATISTICS IO and STATISTICS TIME from SSMS Options

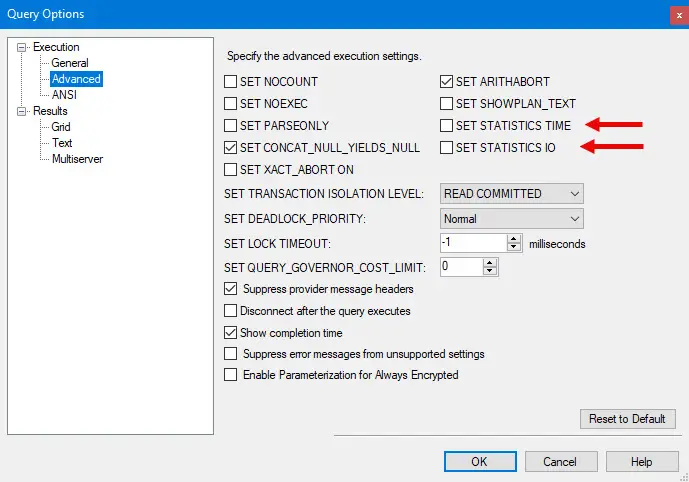

To set the STATISTICS IO and STATISTICS TIME options inside Query Analyzer, click Tools -> Options -> Connection Properties and then check either or both "Set statistics time" or "Set statistics IO".

options

There you have it. Two more additional pieces of information that can be used to determine how your queries are executing. The data you get from the execution plan is helpful, but these additional pieces of information provide additional insight as to how your queries are performing.

Next Steps


Last Updated: 2007-05-31


get scripts

next tip button



About the author
MSSQLTips author Tim Cullen Tim Cullen has been working in the IT industry since 2003 and currently works as a SQL Server Reports Developer.

View all my tips
Related Resources





Comments For This Article




Wednesday, September 10, 2014 - 7:21:26 PM - Greg Coles Back To Top

Any way to force a separate time to show for the WITH groupings? I have a statement with several WITH's before a MERGE statement. It looks like the execution time includes the total time it takes to do the WITH groupings as well as the MERGE.

Greg


Sunday, March 16, 2014 - 11:57:09 AM - Tim Cullen Back To Top

Hi Jared:



I don't think performance is impacted but I'll have to do some research. Some of the set options are applicable to the current session only. Also, I have seen occasions where extra output causes errors while running some applications.



Tim


Friday, March 14, 2014 - 9:58:46 AM - Jared Pavan Back To Top

I noticed that you turn STATISTICS IO ON, then OFF after the execution. Other than having the extra output in the Results pane, are there any negative performance effects of leaving STATISTICS IO and STATISTICS TIME ON permanantly?
