Problem
Graphs can be used to formulate mathematical models for many different applications and one particular type of problem to be solved deals with networks that transport some kind of resource from one endpoint to another, like water or electricity. Is it possible to create using only SQL Server features?
Solution
The maximum flow problem is the same as when you try to pump as much water as possible through a bunch of connected pipes. The start node or source (S) is where the water comes in, and the destination node or sink (T) is where it needs to go, and every single pipe in between, has a limit on how much water it can handle at once.
Ford-Fulkerson Algorithm
The Ford-Fulkerson algorithm uses the idea of augmenting paths, starting with an initial flow of zero, and interactively finding a path from S to T, with available capacity, increasing the flow, pushing as much water as it is possible, until at least one pipe reaches its limit, repeating this process until you literally cannot find a single open route left.
The same concept used for water can be used to figure out traffic gridlock, routing internet data, or manage supply chains.
Terms and definitions
- Graph nodes (vertices) – Points representing entities.
- Graph edges (links) – Lines connecting pairs of nodes, representing relationships.
SQL Tables
Let’s create a few tables to walk through an example.
The edge table:
CREATE TABLE [dbo].[GraphFlowEdges](
[EdgeId] [int] IDENTITY(1,1) NOT NULL,
[NodeFrom] [nvarchar](10) NULL,
[NodeTo] [nvarchar](10) NULL,
[X] [int] NULL,
[Y] [int] NULL,
[Capacity] [decimal](12, 4) NULL,
[Residual] [decimal](12, 4) NULL,
CONSTRAINT [PK_GraphFlowEdges] PRIMARY KEY CLUSTERED
(
[EdgeId] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF) ON [PRIMARY]
) ON [PRIMARY]
GOThe nodes table:
CREATE TABLE [dbo].[GraphFlowNodes](
[NodeId] [int] NOT NULL,
[NodeName] [nvarchar](10) NULL,
[Parent] [int] NULL,
[Queue] [int] NULL,
[Visited] [bit] NULL,
CONSTRAINT [PK_GraphFlowNodes] PRIMARY KEY CLUSTERED
(
[NodeId] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF) ON [PRIMARY]
) ON [PRIMARY]
GOStored Procedures
The Breadth-first search (BFS) is an algorithm for searching a tree data structure for a node that satisfies a given property.
-- =============================================
-- Author: SCP - MSSQLTips
-- Create date: 20250305
-- Description: Breadth-First Search (BFS)
-- =============================================
CREATE OR ALTER PROCEDURE [dbo].[uspGraphBFS]
(@Source int
,@Sink int)
AS
BEGIN
DECLARE @Front int = 1
,@Rear int = 1
,@n int
,@u int
,@v int;
UPDATE [dbo].[GraphFlowNodes]
SET [Visited] = 0
,[Parent] = NULL
,[Queue] = NULL;
SELECT @n = COUNT(*)
FROM [dbo].[GraphFlowNodes];
UPDATE [dbo].[GraphFlowNodes]
SET [Visited] = 1
,[Parent] = -1
WHERE [NodeId] = @Source;
UPDATE [dbo].[GraphFlowNodes]
SET [Queue] = @Source
WHERE [NodeId] = @Rear;
WHILE @Front <= @Rear BEGIN
SET @u = (SELECT [Queue]
FROM [dbo].[GraphFlowNodes]
WHERE [NodeId] = @Front);
SET @Front += 1;
SET @v = 1;
WHILE @v <= @n BEGIN
IF (SELECT [Visited]
FROM [dbo].[GraphFlowNodes]
WHERE [NodeId] = @v) = 0 AND
(SELECT [Residual]
FROM [dbo].[GraphFlowEdges]
WHERE [X] = @u AND
[Y] = @v) > 0 BEGIN
UPDATE [dbo].[GraphFlowNodes]
SET [Queue] = @v
WHERE [NodeId] = @Rear + 1;
SET @Rear += 1;
UPDATE [dbo].[GraphFlowNodes]
SET [Visited] = 1
,[Parent] = @u
WHERE [NodeId] = @v;
IF @v = @Sink
RETURN 1;
END
SET @v += 1;
END
END
RETURN 0;
END
GOThe Ford-Fulkerson algorithm to compute the maximum flow.
-- =============================================
-- Author: SCP - MSSQLTips
-- Create date: 20250305
-- Description: Breadth-First Search (BFS)
-- =============================================
CREATE OR ALTER PROCEDURE [dbo].[uspGraphFordFulkerson]
(@Source nvarchar(10)
,@Sink nvarchar(10))
AS
BEGIN
SET NOCOUNT ON;
BEGIN TRY
IF (SELECT COUNT(*) FROM [dbo].[GraphFlowEdges]) = 0 BEGIN
PRINT 'No data was entered on the Edges table!'
RETURN;
END
DECLARE @ini nvarchar(10) = 'S'
,@fin nvarchar(10) = 'T'
,@n int
,@v int
,@Flow decimal(12,4)
,@Inf decimal(12,4) = 999999
,@MaxFlow decimal(12,4)= 0
,@Parent int
,@Residual decimal(12,4)
,@Result bit;
TRUNCATE TABLE [dbo].[GraphFlowNodes];
INSERT INTO [dbo].[GraphFlowNodes]
SELECT DENSE_RANK() OVER (ORDER BY MIN([EdgeId]))
,[NodeFrom]
,NULL
,NULL
,0
FROM [dbo].[GraphFlowEdges]
GROUP BY [NodeFrom]
ORDER BY MIN([EdgeId]);
INSERT INTO [dbo].[GraphFlowNodes]
SELECT DENSE_RANK() OVER (ORDER BY MIN([EdgeId])) + @@ROWCOUNT
,[NodeTo]
,NULL
,NULL
,0
FROM [dbo].[GraphFlowEdges]
WHERE [NodeTo] NOT IN
(SELECT NodeName
FROM [dbo].[GraphFlowNodes])
GROUP BY [NodeTo]
ORDER BY MIN([EdgeId]);
UPDATE [dbo].[GraphFlowEdges]
SET X = [NodeId]
FROM [dbo].[GraphFlowNodes]
WHERE NodeFrom = NodeName;
UPDATE [dbo].[GraphFlowEdges]
SET Y = [NodeId]
FROM [dbo].[GraphFlowNodes]
WHERE NodeTo = NodeName;
UPDATE [dbo].[GraphFlowEdges]
SET [Residual] = [Capacity];
SELECT @Source = NodeId
FROM [dbo].[GraphFlowNodes]
WHERE [NodeName] = @ini;
SELECT @Sink = NodeId
FROM [dbo].[GraphFlowNodes]
WHERE [NodeName] = @fin;
SELECT @n = COUNT(*)
FROM [dbo].[GraphFlowNodes];
EXEC @Result = [dbo].[uspGraphBFS] @Source,@Sink;
WHILE @Result <> 0 BEGIN
SET @Flow = @Inf;
SET @v = @Sink;
WHILE @v <> @Source BEGIN
SET @Parent = (SELECT [Parent]
FROM [dbo].[GraphFlowNodes]
WHERE [NodeId] = @v);
SET @Residual = (SELECT [Residual]
FROM [dbo].[GraphFlowEdges]
WHERE [X] = @Parent AND
[Y] = @v);
IF @Flow > @Residual
SET @Flow = @Residual;
SET @v = @Parent;
END
SET @v = @Sink;
WHILE @v <> @Source BEGIN
SET @Parent = (SELECT [Parent]
FROM [dbo].[GraphFlowNodes]
WHERE [NodeId] = @v);
UPDATE [dbo].[GraphFlowEdges]
SET [Residual] -= @Flow
WHERE [X] = @Parent AND
[Y] = @v;
UPDATE [dbo].[GraphFlowEdges]
SET [Residual] += @Flow
WHERE [X] = @v AND
[Y] = @Parent;
SET @v = @Parent;
END
SET @MaxFlow += @Flow;
EXEC @Result = [dbo].[uspGraphBFS] @Source,@Sink;
END
SELECT @MaxFlow AS MaxFlow;
END TRY
BEGIN CATCH
IF @@TRANCOUNT > 0
BEGIN
ROLLBACK TRANSACTION;
END
-- Print error information.
PRINT 'Error: ' + CONVERT(varchar(50), ERROR_NUMBER()) +
', Severity: ' + CONVERT(varchar(5), ERROR_SEVERITY()) +
', State: ' + CONVERT(varchar(5), ERROR_STATE()) +
', Procedure: ' + ISNULL(ERROR_PROCEDURE(), '-') +
', Line: ' + CONVERT(varchar(5), ERROR_LINE());
PRINT ERROR_MESSAGE();
END CATCH;
END
GOExample of Ford-Fulkerson Algorithm in SQL Server

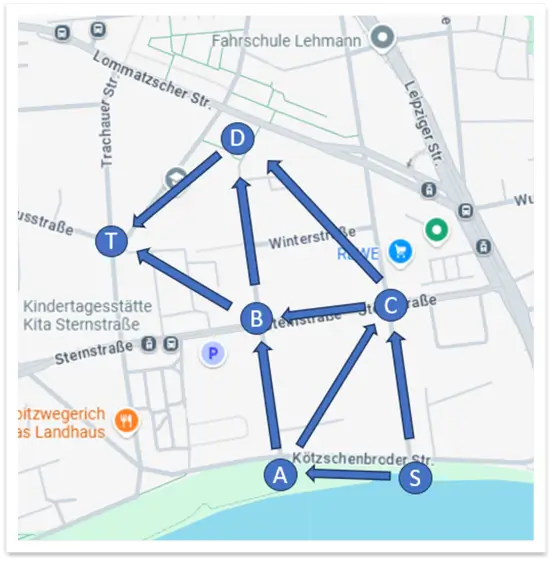

Let’s suppose that a water distribution has the following shape.
First, we will delete any previous data entered, then enter the values for all edges, and finally, run the store procedure.
You can enter any value for the nodes: like numbers, letters, or words. For this example, I am using random numbers for capacity and I am not pointing out the unit of measure.
TRUNCATE TABLE [dbo].[GraphFlowEdges];
INSERT INTO [dbo].[GraphFlowEdges]
([NodeFrom],[NodeTo],[Capacity])
VALUES ('S','A',80.50)
,('S','C',30.50)
,('A','B',25.50)
,('A','C',55.75)
,('B','D',17.25)
,('B','T',47.25)
,('C','B',29.35)
,('C','D',17.00)
,('D','T',50.00);
GO
EXEC [dbo].[uspGraphFordFulkerson]
@Source = N'S',
@Sink = N'T'
GOThe result for the maximum flow is 71.85 units of measure at node (T).
There are others algorithms to find maximum flow like Edmonds-Karp which is very similar to this one and it is recommended for large graphs.
