Create a many-to-many derived hierarchy in SQL Server Master Data Services

By:   |   Comments (9)   |   Related: > Master Data Services


Problem

SQL Server 2016 comes with many brand new features for Master Data Services (MDS). One of those new features is the ability to model a many-to-many relationship in a derived hierarchy. In this tip, we'll go over the necessary steps you need to take to set-up such a hierarchy.

Solution

A many-to-many relationship occurs when a member of an entity can have a relationship with one more attributes of another entity, and the other way around. A typical example are joint checking accounts. A person can have one more checking accounts, but since a checking account can be shared between multiple persons, a checking account can belong to one or more persons. In a database, such a relation is typically modeled using a bridge table. Such a bridge stores all the relationships between the two entities. In MDS, we'll do the exact same thing.

As example in this tip, I have multiple users who are responsible for one or more sales regions. A region though can belong to one or more users as well. I created a simple entity to hold the users using the MDS Excel add-in:

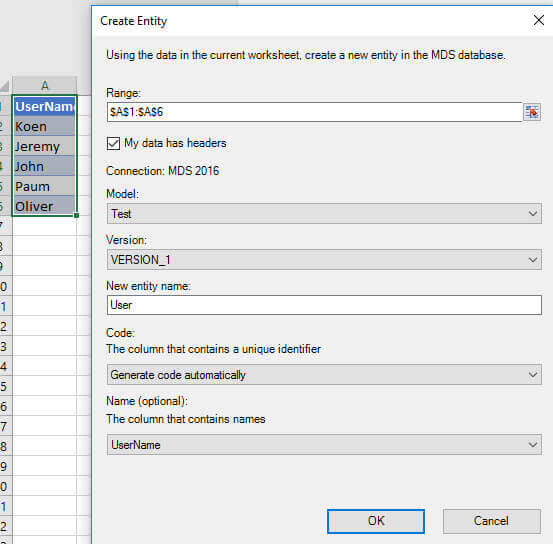

create user entity in Master Data Services

Next I created an entity to hold the sales regions:

create region entity in Master Data Services

The bridge table itself will consist of two attributes: User and Region, which are both domain based attributes using the entities we just created. In order for the domain based attributes to work properly, the name attribute of the two entities needs to be populated. Let's create the bridge entity:

create bridge entity in Master Data Services

The next step is to add the domain based attribute for User:

create DBA user in Master Data Services

Repeat the same steps to add the Region attribute:

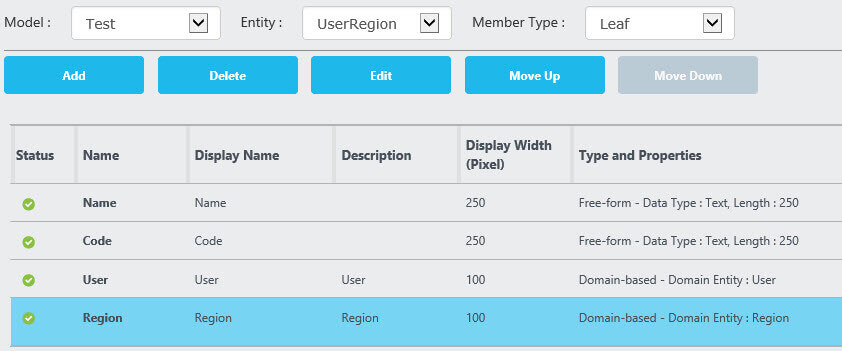

create DBA region in Master Data Services

Now we can enter the data for the bridge table using the dropdown menus. As you can see below, a certain user can belong to multiple regions and a region can hold multiple users.

populate bridge table in Master Data Services

The hard work has been done. Now we only need to create a hierarchy on top of these entities.

add derived hierarchy in Master Data Services

The first step is to drag the User entity to the leaf level of the editor.

create derived hierarchy leaf level in Master Data Services

MDS will create a hierarchy with a single level, which you can preview at the right. MDS will also automatically scan for relationships with other entities. It has found that Region is related to User, through the bridge entity (as indicated between brackets).

create derived hierarchy leaf level preview in Master Data Services

You can now drag the Region entity above the User entity in the editor (at Drop Parent Here). A parent level is added to the hierarchy. In the preview, you can verify that the many-to-many relationship is handled correctly by MDS.

create derived hierarchy add parent level in Master Data Services

You can also create subscription views on top of a many-to-many derived hierarchy. You can configure the view to have a fixed number of derived levels. In that case, the hierarchy will be flattened.

create subscription view with derived levels in Master Data Services

The view returns the data in the following format:

subscription view with derived levels in SQL Server Management Studio

The other option is to create the subscription view as a parent-child relationship.

create subscription view as parent child in Master Data Services

The format of the view is a bit different now: the regions are returned with ROOT as their parent, while the users can be returned multiple times, each time with a single region as parent. This means data can be duplicated, so be careful when loading this data into another system.

create subscription view as parent child in SQL Server Management Studio

Conclusion

Creating a derived hierarchy on top of a many-to-many relationship is straight forward. You need an entity with domain based attributes for both entities. This entity will function as a bridge table. When creating the derived hierarchy in the editor, MDS will automatically use this bridge entity to determine the relationships.
