Problem

Microsoft Azure Cognitive Services provides a full-text search engine, persistent storage of search indexes, integrated AI used during indexing to extract more text and structure, and APIs and tools. How do you create indexes using the sample dataset in Azure Cognitive Service? In this tip we explore how to create a search index for the Azure Cognitive Service using the Azure portal.

Solution

The earlier tip, An Overview of Azure Cognitive Search Service, gave an overview of Azure Cognitive Search Service. It further deployed cognitive service and imported data from the existing Azure SQL Database to demonstrate the search functionality.

Azure Cognitive Search provides full-text search functionality for heterogeneous data. Its key strengths are below:

  • Azure Data Integration
  • It can integrate with artificial intelligence (AI) for converting unsearchable content into text searchable.
  • It adds AI enrichment and knowledge mining functionality.
  • It supports Linguistics and custom analyzers with the support of more than 56 languages.
  • It has valuable features such as auto-complete, synonym, auto-correction, rich query language, relevance tuning, geo-search, and result composition.
  • It offers Azure scalability, reliability, and world-class availability.

Prerequisites

Before you get started, make sure to have the following items ready:

Azure Search Configurations

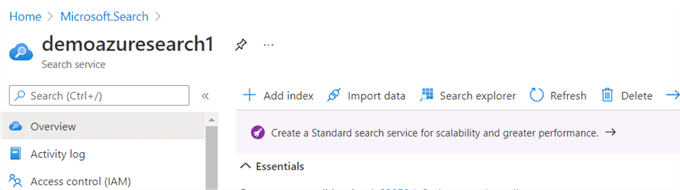

Once we deploy the Azure Cognitive Search service, it can import data for building indexes.

Azure Cognitive Search

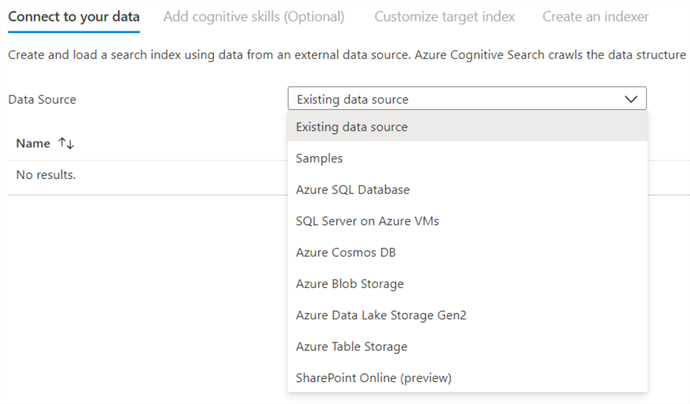

Click on Import Data and you can choose existing data sources from the drop-down list.

Azure Cognitive Search import data

For this tip, we will use Azure SQL Database as a data source. I have already deployed Azure SQL Database, as shown below.

Azure Cognitive Search using sql database

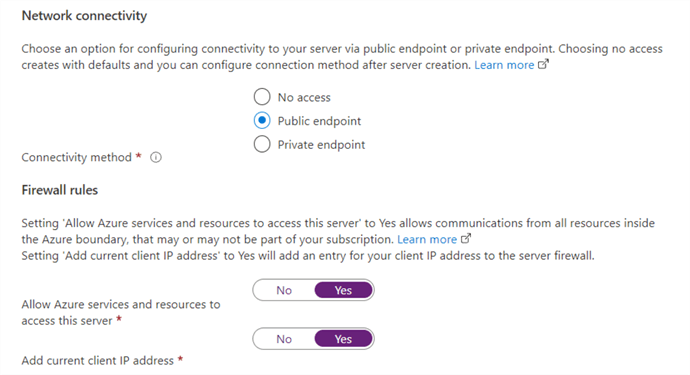

You can follow these existing tips for deploying Azure SQL DB. For the deployment, you should enable the following option – Allow Azure Services and resources to access this server.

Azure Cognitive Search sql database settings

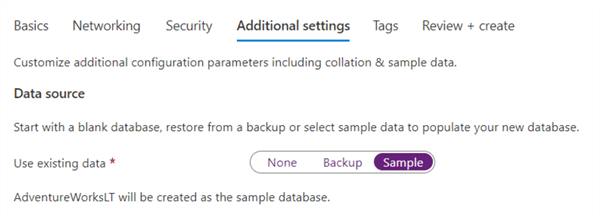

Also, I used the exiting [AdventureWorksLT] as a sample database.

Azure Cognitive Search sql database settings

Now, go back to Azure Cognitive Service Import data wizard and choose Azure SQL Database. Click on the option – Choose an existing connection and select the database we want to use for data import and indexing. It automatically populates the connection string for your database.

Azure Cognitive Search import data

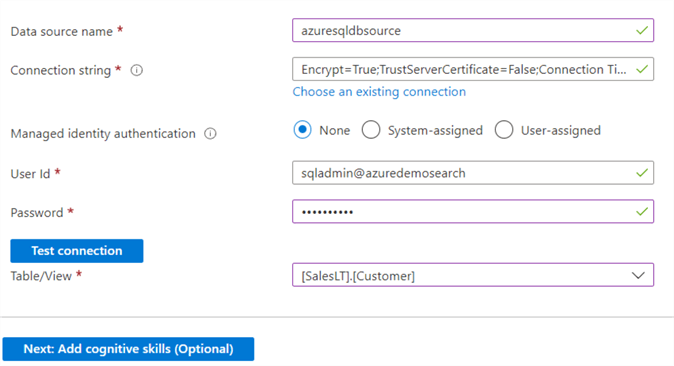

The connection string does not specify the password for the SQL user. Therefore, enter the password and click on Test Connection. Once the connection is validated, it shows status – Connection Validated.

Azure Cognitive Search import data

After a successful test connection is made, the next step is to provide a table or view. Your user will use this table to search for required data. I am using [SalesLT].[Customer] table in this example.

Azure Cognitive Search import data

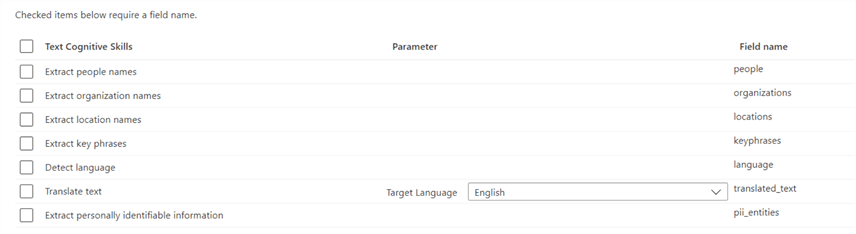

Click on Next: Add cognitive skills. It is an optional step and required if you need optical character recognition (OCR) of text in image files and text analysis for unstructured data.

You can select which AI enrichment to be included in the skill set. I am not selecting anything here, just keeping the default settings and clicking on the skip button.

Azure Cognitive Search add cognitive skills

Customize Target Index

In the Customize Target Index step of the Wizard, you can now decide to review or change the auto-generated index schema. The Wizard automatically identifies the data fields and their properties based on analyzing your data sampling and deriving information from its metadata.

You can also modify the key field for a document. The key field is used to identify each document in your index uniquely.

Although there are quite a few options to choose from when it comes to stemmers, Azure Cognitive Search uses an Apache Lucene analyzer named Standard (standard Lucene). The analyzed text is converted into lower case characters. Indexed documents, search terms, and analyzed text are all part of query processing.

You can refer to this resource for different types of Analyzers.

Azure Cognitive Search import data

Create an Indexer

An indexer is a crawling robot that extracts searchable data and meta information from an external Azure data source.

When this last step is reached, you can specify the indexer's name and its frequency. The indexer's name can be chosen manually, but you can let the tool give the chosen name automatically if you prefer. The chosen frequency is usually set up according to how often you think of new posts or updates. Therefore, you need to make sure to check back here frequently after inserting or updating data to control whether this one has been indexed already (or not).

If you want to clear a record from your index if it is deleted from the database, you can turn on the "Track Deletions" checkbox. Once enabled, you will have to specify additional input – the column which identifies a record as deleted (i.e., the column used for soft deletes).

Azure Cognitive Search import data

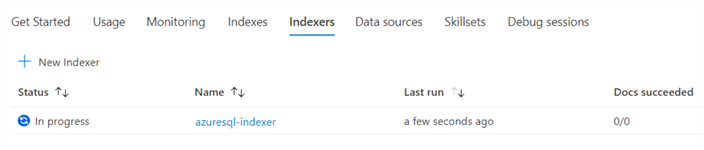

Once the index deployment is successful, you can click on Indexer to view the documents it scanned. Currently, it shows 0 documents in the following screenshots.

Azure Cognitive Search indexers

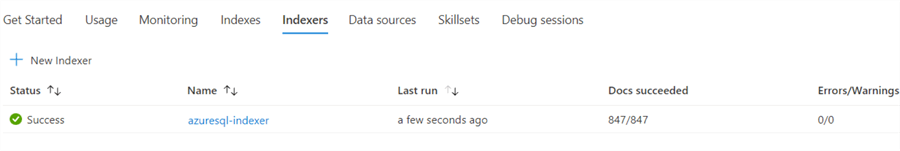

Refresh the console, and it gives information about the number of documents scanned and the number of errors\warnings successfully.

Azure Cognitive Search indexers

Search Explorer

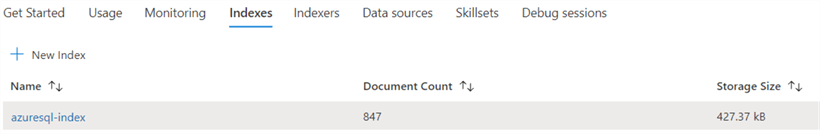

Once the index is available, you can use Postman to perform HTTP requests or write some .Net code that allows you to connect with the Azure Search service to retrieve search results.

Azure Cognitive Search indexes

On the Azure portal, you can use Search Explorer for searching data using the Azure Cognitive service. Azure Search Explorer is a tool that allows users to learn the syntax of Azure Search, how queries work, and use an explorer to identify when their search indexes need updating. As a Cognitive Search user, you can tell whether any new content has been indexed since your last refresh by using the explorer in conjunction with query previews.

Click on the Search Explorer, and it would open a search window, where you can choose the index to use for your search query. For instance, if you want to search on a book repository, select the relevant index and enter the text, you require to search, and it shows you relevant results.

In this tip, we use a basic query. You can refer to this resource for understanding query strings.

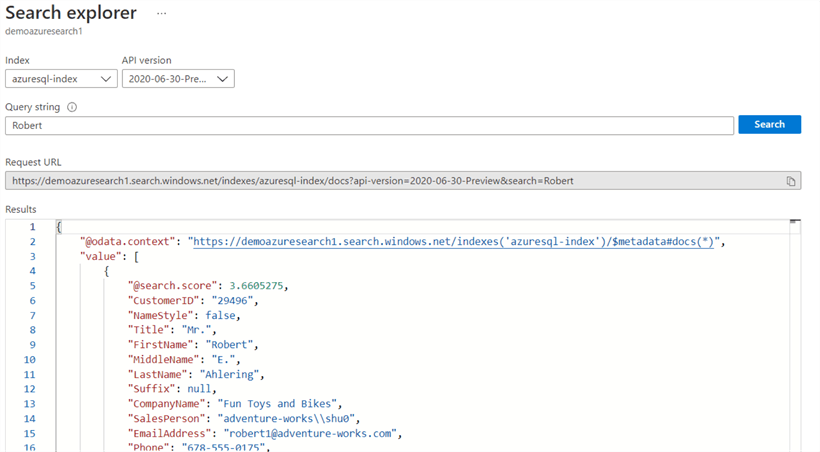

For example, in the query string, I specified "Robert" and clicked on search. It returns all data rows matching the specified query string.

Azure Cognitive Search search explorer
Azure Cognitive Search search explorer

Wrapping Up

This tip was designed to teach you how to create and modify a search index using Azure Cognitive Services. You learned how to create an index using the Import Data wizard and the Search Explorer in the Azure portal to query and filter a search index.
