Handling Transactions in Nested SQL Server Stored Procedures


By:   |   Last Updated: 2017-06-08   |   Comments   |   Related Tips: More > T-SQL

Problem

Did you ever have a problem handling SQL Server transactions in nested stored procedures? Did you ever receive an error message “Transaction count after EXECUTE indicates a mismatching number of BEGIN and COMMIT statements. Previous count = 1, current count = 0.”? However, after reviewing your code you still had a feeling that you handled transactions correctly? In this tip we are going to explain the reason for the above error and suggest solutions on how to correctly manage transactions in case of nesting stored procedures to avoid this error.

Solution

Let’s illustrate a problem many developers face when using transactions in nested stored procedures. First, we will create a test environment:

--script 1
USE master
GO

CREATE DATABASE TestDB
GO

USE TestDB
GO

CREATE TABLE TestTable
(
  ID INT NOT NULL,
  Value INT NOT NULL,
  PRIMARY KEY (ID)
)
GO

To facilitate our example we will use two procedures – an outer procedure and an inner procedure.

Stored procedure uspUpdateData updates rows in table TestTable.

--script 2
USE TestDB
GO

CREATE PROCEDURE uspUpdateData
   @pID INT,
   @pNewValue INT
AS
BEGIN

   BEGIN TRY

      BEGIN TRANSACTION

         UPDATE TestTable
         SET [email protected]
         WHERE [email protected] AND Value < 100

      IF @@TRANCOUNT > 0
         COMMIT

   END TRY

   BEGIN CATCH

      IF @@TRANCOUNT > 0
         ROLLBACK

      SELECT ERROR_NUMBER() AS ErrorNumber
      SELECT ERROR_MESSAGE() AS ErrorMessage

   END CATCH
END


Stored procedure uspInsertData inserts data into table TestTable and also calls uspUpdateData to update the value for specific rows.

--script 3
USE TestDB
GO

CREATE PROCEDURE uspInsertData
   @pID INT,
   @pValue INT
AS
BEGIN

   BEGIN TRY

      BEGIN TRANSACTION

         INSERT INTO TestTable(ID, Value)
         VALUES  (@pID, @pValue)

         EXEC uspUpdateData @[email protected], @pNewValue=NULL

      IF @@TRANCOUNT > 0
         COMMIT

   END TRY

   BEGIN CATCH

      IF @@TRANCOUNT > 0
         ROLLBACK

      SELECT ERROR_NUMBER() AS ErrorNumber
      SELECT ERROR_MESSAGE() AS ErrorMessage

   END CATCH
END


Now let’s call the outer stored procedure uspInsertData.

--script 4
USE TestDB
GO

EXEC uspInsertData @pID=1, @pValue=10
GO

SELECT * FROM TestTable


As the Value column cannot be NULL in table TestTable, the transaction is rolled back and both the insert and update operations fail, but we also receive another error message related to a mismatching number of BEGIN and COMMIT statements:

transaction count after execute indicates a mismatching of begin and commit statements

As we know, the BEGIN TRANSACTION statement increases the value of @@TRANCOUNT by 1, each COMMIT decreases it by 1 and a ROLLBACK statement sets @@TRANCOUNT to 0 (except ROLLBACK TRANSACTION to savepoint).

Reviewing our code we can see that we always check the value of @@TRANCOUNT to be greater than 1, which means that we are inside a transaction and then do COMMIT or ROLLBACK. So, why are BEGIN and COMMIT statements mismatched? The key point is that we didn’t consider the fact that each stored procedure must end with the same transaction count with which it is executed, otherwise an error will occur. It is not a fatal error, however it should be avoided and there are different approaches. In our example when uspUpdateData is executed the @@TRANCOUNT=1, but when it is finished @@TRANCOUNT=0, because the ROLLBACK occurred in uspUpdateData. It means that ROLLBACK must be called in the procedure that starts the outermost transaction.

To avoid this error, we can do the following: we can open transactions and commit or roll them back only in the outermost stored procedure, but considering the fact that the inner procedure can be called separately or in other procedures, so we will need to include logic in the inner procedure into the transaction. To do this, we can check the inner procedure if there is an open transaction from the caller procedure. If yes, we do not open a new one, if no, we open a transaction in the inner procedure and commit it in case of success. In case of failure, if the transaction is opened in the outer procedure (@@TRANCOUNT>1 when inner procedure starts), we generate an error to allow the outermost procedure to call a ROLLBACK, so in this case the ROLLBACK is never called from the inner procedure. If the transaction is opened in the inner procedure (@@TRANCOUNT=1), we issue a ROLLBACK in the inner procedure. As a result our procedure ends with the same count of transactions as it starts, so we will not receive an error.

To illustrate this approach we will modify the inner procedure in the following way:

--script 5
USE TestDB
GO

ALTER PROCEDURE uspUpdateData
   @pID INT,
   @pNewValue INT,
   @pResCode INT=0 OUTPUT --0-OK, 1-ERROR
AS
BEGIN

   DECLARE @trancount BIT = 0

   BEGIN TRY

      IF @@TRANCOUNT=0
      BEGIN
         BEGIN TRANSACTION
         SET @trancount=1
      END

         UPDATE TestTable
         SET [email protected]
         WHERE [email protected] AND Value < 100

      IF @trancount=1
         COMMIT

   END TRY

   BEGIN CATCH

      IF @trancount=1
         ROLLBACK

      SELECT ERROR_NUMBER() AS ErrorNumber
      SELECT ERROR_MESSAGE() AS ErrorMessage

      SET @pResCode=1

   END CATCH

END


Also, we will modify the outer procedure to raise an error when the inner procedure fails, to be able to go to a CATCH block and do a ROLLBACK.

--script 6
USE TestDB
GO

ALTER PROCEDURE uspInsertData
   @pID INT,
   @pValue INT,
   @pResCode INT=0 OUTPUT --0-OK, 1-ERROR
AS
BEGIN

   BEGIN TRY

      BEGIN TRANSACTION

         INSERT INTO TestTable(ID, Value)
         VALUES  (@pID, @pValue)

         EXEC uspUpdateData @[email protected], @pNewValue=NULL, @[email protected] OUTPUT

         IF @pResCode=1
            RAISERROR('uspUpdateData failed',16,1)

       IF @@TRANCOUNT > 0
          COMMIT

   END TRY

   BEGIN CATCH

      IF @@TRANCOUNT > 0
         ROLLBACK

      SELECT ERROR_NUMBER() AS ErrorNumber
      SELECT ERROR_MESSAGE() AS ErrorMessage

      SET @pResCode=1

   END CATCH
END

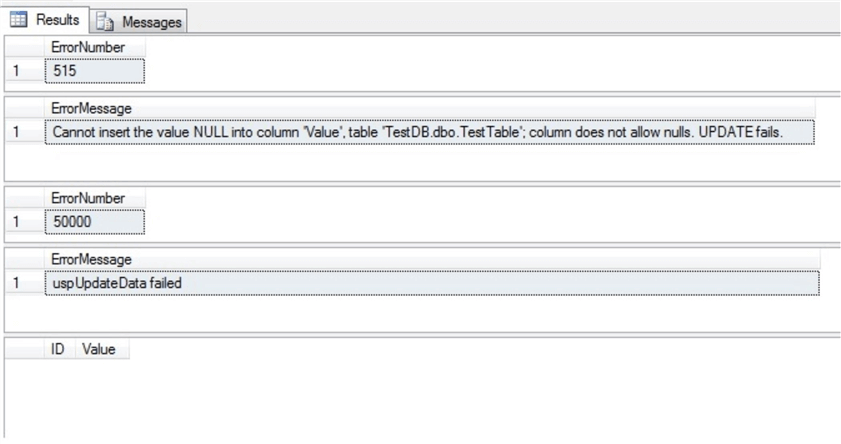

As we can see we have added the @pResCode output parameter in both procedures to check if the inner procedure fails, to be able to decide to do a ROLLBACK or not. Now execution of the uspInsertData procedure will not generate an error, but will still have the same result – all changes are rolled back and the TestTable is empty.

SQL Server stored procedure failed

We can also use another approach allowing the inner procedures to open transactions without checking if there are open transactions. In this case we must also issue a ROLLBACK only in the procedure where the outermost transaction is opened, but if @@TRANCOUNT>1 in the inner procedure we need to issue a COMMIT even in case of failure to end the procedure with the same value of @@TRANCOUNT as it was when it started. Instead, we return a failure to the outermost procedure to do the ROLLBACK.

--script 7
USE TestDB
GO

ALTER PROCEDURE uspUpdateData
   @pID INT,
   @pNewValue INT,
   @pResCode INT=0 OUTPUT --0-OK, 1-ERROR
AS
BEGIN

   BEGIN TRY

      BEGIN TRANSACTION

         UPDATE TestTable
         SET [email protected]
         WHERE [email protected] AND Value < 100

      IF @@TRANCOUNT > 0
        COMMIT

   END TRY

   BEGIN CATCH

      IF @@TRANCOUNT=1
         ROLLBACK
      ELSE
         IF @@TRANCOUNT > 1
            COMMIT

      SELECT ERROR_NUMBER() AS ErrorNumber
      SELECT ERROR_MESSAGE() AS ErrorMessage

      SET @pResCode=1

   END CATCH

END

So, in both cases we do not receive the error message “Transaction count after EXECUTE indicates a mismatching number of BEGIN and COMMIT statements. Previous count = 1, current count = 0.” and our logic is implemented correctly.

Conclusion

All in all, each procedure must end with the same count of transactions as it starts, otherwise there will be a non fatal error “Transaction count after EXECUTE indicates a mismatching number of BEGIN and COMMIT statements. Previous count = 1, current count = 0.”. There are different approaches of handling transactions in nested stored procedures, but in all of them a ROLLBACK must be issued in the outermost transaction.
