Fixing SQL Server Installation Error 1639


By:   |   Updated: 2018-03-23   |   Comments (1)   |   Related: More > Install and Uninstall

Problem

I was working on a critical SAP migration project where we were migrating all SAP components from Oracle to SQL Server. One of the applications that is not a core SAP component also needed to be migrated as part of the migration. The problem with this component was that vendor did not support this application beyond SQL Server 2008 R2 for that specific version.  When I was installing SQL Server 2008 R2 in order to migrate the data, I faced error 1639 during the installation. Although I had this error with SQL Server 2008 R2, this error is very much relevant to any of latest versions of SQL Server.

Solution

As I mentioned, when we were installing SQL Server I was faced with error 1639 when installing SQL Server 2008 R2. Here I will explain the steps I took and how I fixed the problem.

SQL Server Installation Error 1639

Step 1:

I launched SQL Server installation center and proceeded with the installation. I completed each required parameter during installation, but still my installation failed with error 1639.

sql server installation

You can see all SQL Server components failed to install in the above screenshot. Only the SQL Client Connectivity SDK component has been installed.

When I clicked on Next button I got the below screenshot with the installation log file path.

sql server installation

Step 2:

I decided to look in to the summary log file to fix this issue. I clicked on the summary log file path given in the above screenshot. Here is the summary log file which suggested looking into another log file as shown in the below screenshot.

sql server installation log

I opened the above highlighted log file to see more details. When I opened the file, I saw error 1639 captured there as shown below in the highlighted lines.

sql server installation log

Step 3:

The root cause of this issue was very simple, I placed the SQL Server setup files under a directory named “SQL Server 2008”. You can see the spaces between sql and server and 2008. This was the main issue which causes the installation to fail. You can see the name of folder in the below screenshot.

sql server folder name

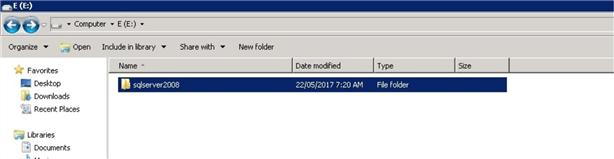

To fix this issue, I removed the blank spaces in the folder name. You could also enter an underscore (_) or any character in place of the blank spaces to fix this issue. You can see below I have removed the spaces in the folder name.

sql server folder name

Step 4:

Next, I decided to uninstall SQL Server from this database server. I removed the failed installation of SQL Server from the server using “Add and Remove Programs” as we generally do on any Windows machine. I rebooted the server post uninstalling SQL Server.

Step 5:

Once the server came online, I went to the installation folder and started the installation again by right clicking on the setup file and choosing “Run as administrator” to start the SQL Server installation again as shown below.

install sql server

Step 6:

I followed each window and entered all the required values and parameters to make this installation successful. This time SQL Server installed successfully on this server. You can see the final screen of this installation in the below screenshot.

sql server installation

Step 7:

Next, I connected to the installed instance of SQL Server to validate the installation. I connected using sqlcmd and SQL Server Management Studio. Below is the screenshot of sqlcmd, where I was able to successfully connected to this SQL Server instance and checked the installed version by running SELECT @@VERSION.

sqlcmd

I also validated this installation by connecting to the database engine with SQL Server Management Studio. You can see I successfully established a database connection to the SQL Server 2008 R2 instance in the below screenshot.

ssms
Summary

As you can see the fix was pretty simple, but I had to dig through a few log files to figure out the problem.

Next Steps


Last Updated: 2018-03-23


get scripts

next tip button



About the author
MSSQLTips author Manvendra Singh Manvendra Singh has over 5 years of experience with SQL Server and has focused on Database Mirroring, Replication, Log Shipping, etc.

View all my tips
Related Resources




Post a comment or let the author know this tip helped.

All comments are reviewed, so stay on subject or we may delete your comment. Note: your email address is not published. Required fields are marked with an asterisk (*).

*Name    *Email    Email me updates


Signup for our newsletter
 I agree by submitting my data to receive communications, account updates and/or special offers about SQL Server from MSSQLTips and/or its Sponsors. I have read the privacy statement and understand I may unsubscribe at any time.







Thursday, August 23, 2018 - 12:36:45 PM - Giovanni Back To Top

Hi Manvendra,

Thank you very much for your post on error 1639. With your post I was able to find the log file. However, do you know how I can fix the problem from here?

These are the two log files.

Thanks very much in advance.

Regards,

Giovanni

Log file 1

Configuration file:            C:\Program Files\Microsoft SQL Server\140\Setup Bootstrap\Log\20180823_181447\ConfigurationFile.ini

Detailed results:

  Feature:                       Database Engine Services

  Status:                        Failed

  Reason for failure:            An error occurred during the setup process of the feature.

  Next Step:                     Use the following information to resolve the error, and then try the setup process again.

  Component name:                SQL Server Database Engine Services Instance Features

  Component error code:          1639

  Component log file:            C:\Program Files\Microsoft SQL Server\140\Setup Bootstrap\Log\20180823_181447\sql_engine_core_inst_Cpu64_1.log

  Error description:             Invalid command line argument. Consult the Windows Installer SDK for detailed command line help.

  Error help link:               https://go.microsoft.com/fwlink?LinkId=20476&ProdName=Microsoft+SQL+Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=

                                                                                                                                 14.0.1000.169&EvtType=sql_engine_core_inst.msi%400x162A16FE%400x1639

Rules with failures:

Global rules:

Scenario specific rules:

Rules report file:               C:\Program Files\Microsoft SQL Server\140\Setup Bootstrap\Log\20180823_181447\SystemConfigurationCheck_Report.htm



Log file 2

=== Verbose logging started: 23/08/2018  18:15:28  Build type: SHIP UNICODE 5.00.10011.00  Calling process: C:\SQLServer2017Media\Express_ENU\x64\ScenarioEngine.exe ===

MSI (c) (18:C0) [18:15:28:076]: Resetting cached policy values

MSI (c) (18:C0) [18:15:28:076]: Machine policy value 'Debug' is 0

MSI (c) (18:C0) [18:15:28:076]: ******* RunEngine:

           ******* Product: C:\SQLServer2017Media\Express_ENU\x64\setup\sql_engine_core_inst.msi

           ******* Action:

           ******* CommandLine: **********

MSI (c) (18:C0) [18:15:28:077]: Client-side and UI is none or basic: Running entire install on the server.

MSI (c) (18:C0) [18:15:28:077]: Grabbed execution mutex.

MSI (c) (18:C0) [18:15:28:079]: Cloaking enabled.

MSI (c) (18:C0) [18:15:28:079]: Attempting to enable all disabled privileges before calling Install on Server

MSI (c) (18:C0) [18:15:28:079]: Incrementing counter to disable shutdown. Counter after increment: 0

MSI (s) (4C:94) [18:15:28:083]: Running installation inside multi-package transaction C:\SQLServer2017Media\Express_ENU\x64\setup\sql_engine_core_inst.msi

MSI (s) (4C:94) [18:15:28:083]: Grabbed execution mutex.

MSI (s) (4C:0C) [18:15:28:084]: Resetting cached policy values

MSI (s) (4C:0C) [18:15:28:084]: Machine policy value 'Debug' is 0

MSI (s) (4C:0C) [18:15:28:084]: ******* RunEngine:

           ******* Product: C:\SQLServer2017Media\Express_ENU\x64\setup\sql_engine_core_inst.msi

           ******* Action:

           ******* CommandLine: **********

MSI (s) (4C:0C) [18:15:28:084]: Machine policy value 'TransformsSecure' is 0

MSI (s) (4C:0C) [18:15:28:085]: User policy value 'TransformsAtSource' is 0

MSI (s) (4C:0C) [18:15:28:086]: Machine policy value 'DisableUserInstalls' is 0

MSI (s) (4C:0C) [18:15:28:086]: Specified instance {36C9ADEE-91B0-4FFA-9CBA-9164CE6089D5} via transform :InstID02.mst;:InstName02.mst is already installed. MSINEWINSTANCE requires a new instance that is not installed.

MSI (s) (4C:0C) [18:15:28:087]: MainEngineThread is returning 1639

MSI (s) (4C:94) [18:15:28:088]: User policy value 'DisableRollback' is 0

MSI (s) (4C:94) [18:15:28:088]: Machine policy value 'DisableRollback' is 0

MSI (s) (4C:94) [18:15:28:088]: Incrementing counter to disable shutdown. Counter after increment: 0

MSI (s) (4C:94) [18:15:28:088]: Note: 1: 1402 2: HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Installer\Rollback\Scripts 3: 2

MSI (s) (4C:94) [18:15:28:089]: Note: 1: 1402 2: HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Installer\Rollback\Scripts 3: 2

MSI (s) (4C:94) [18:15:28:089]: Decrementing counter to disable shutdown. If counter >= 0, shutdown will be denied.  Counter after decrement: -1

MSI (c) (18:C0) [18:15:28:091]: Decrementing counter to disable shutdown. If counter >= 0, shutdown will be denied.  Counter after decrement: -1

MSI (c) (18:C0) [18:15:28:091]: MainEngineThread is returning 1639

=== Verbose logging stopped: 23/08/2018  18:15:28 ===
