Problem

You're need to access a Microsoft SQL Server instance. If you're going to manage it or develop on it, you will need install a tool like Microsoft SQL Server Management Studio (SSMS) to do so. In this tutorial, we look at how to install SSMS via the GUI and command line.

Solution

We'll look at a brief history of SSMS, what it is, and walk through the process of downloading, installing, connecting to a SQL Server, some basic functionality, and how to check for new versions.

For the purposes of this tutorial, I am installing SSMS 18.10 on a Windows Server 2019 operating system Virtual Machine and will connect to a SQL Server 2019 SQL Server which are all the latest versions as of the time of writing.

What is SSMS?

Earlier versions of SQL Server came with a graphical tool (IDE) and SQL script editor called Enterprise Manager. It was upgraded along with each version and used up through SQL Server 2000. It was updated and repackaged based on Visual Studio toolset as SQL Server Management Studio in SQL Server 2005 and the name continues.

SSMS is a powerful integrated environment that lets you:

  • Configure, monitor, and manage On-Premises and Azure SQL Servers and databases
  • Design, develop and execute T-SQL queries, SQL scripts, stored procedures and functions against SQL Server databases with a query editor
  • Generate scripts from database objects or GUI based processes
  • Also connects to:
    • SQL Server Reporting Services (SSRS)
    • SQL Server Reporting Analysis Services (SSAS)
    • SQL Server Integration Services (SSIS)

Prior to SQL Server 2016, SSMS was installed from the same SQL Server media used to install the SQL Server database engine. As of SQL Server 2016, it's a separate downloadable install and is released independently of the SQL Server database engine releases. This allows:

  • Anyone to install it without needing access to the install media
  • Easy updates as they are now frequently released

Other features are:

  • Works with all supported versions of SQL Server
  • Cost is $0.00 for DBAs, Developers and Business Intelligence Professionals

Download SSMS

Let's get started.

Obtaining SSMS is much easier now as there is no need to find your install media. Simply go to: Download SQL Server Management Studio (SSMS) and you will be redirected to the download page of the latest version.

Here, you can:

  • Find a link to the release notes
    • See what's been fixed
    • Make sure there is no functionality you need that was broken (it happens)
  • Find links to older SSMS versions
    • Downgrade to an earlier version if there is broken functionality you weren't aware of if you didn't read the release notes (we all forget to do that sometimes)
  • Download the installer executable

To start the download, click the Free Download for SQL Server Management Studio (SSMS) x.x link on this page Download SQL Server Management Studio (SSMS).

Download ssms

Install SSMS

Now that we have the installer, SSMS-Setup-ENU.exe, in our download directory we can choose one of the two install options. The first is the traditional way through the GUI by responding to prompts, in an attended install. The second is running it from a command prompt with some options for an unattended or silent install. As GUI method is the most likely method, we'll look at that first.

Install SQL Server Management Studio with GUI

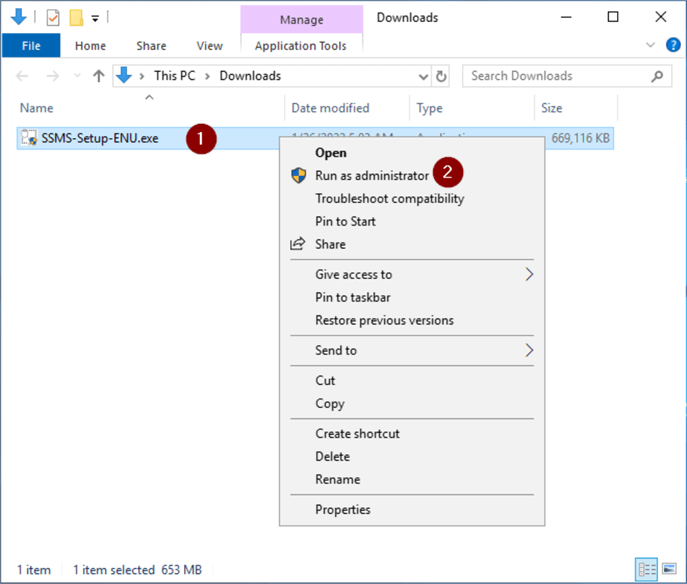

Open your download directory in Windows Explorer.

  1. Right click on the SSMS-Setup-ENU.exe
  2. 'Run as administrator'
Start ssms Installer

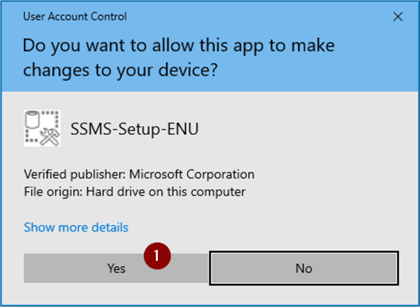

  1. If you're prompted with 'Do you want to allow this app to make changes to your device?', click 'Yes'
user access control settings

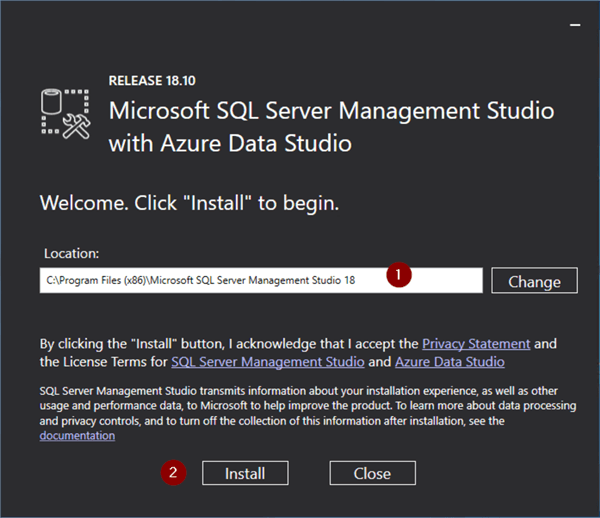

  1. Leave the default install directory or change it if you want, but note that if you change the install directory and want to start SSMS from Start > Run you'll need to add the directory to your %PATH% environment variable
  2. Click 'Install'
ssms Install Screen

The 'Setup Completed' without any errors indicates the install is done.

  1. Click 'Close'
  2. Check the install log file under %TEMP%\SSMS
ssms Setup Completed

SSMS Unattended Install from Command Line

In the event you want to install from a script you can do an unattended install from the command line.

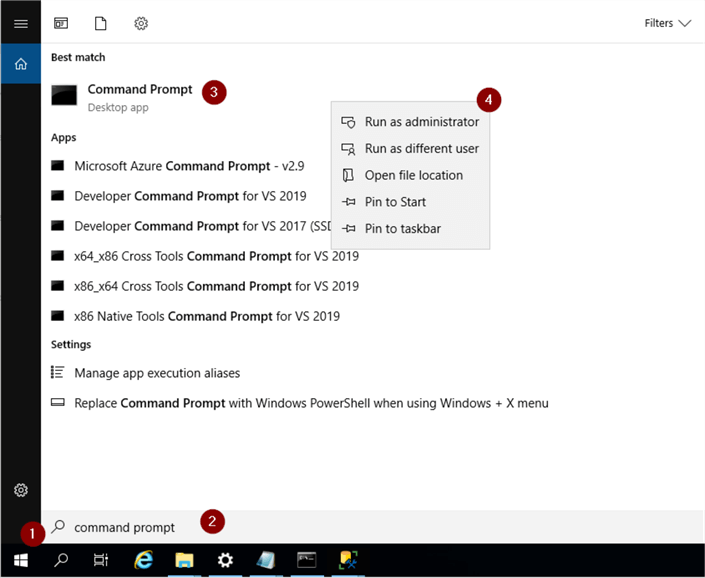

Open Search and enter cmd.exe.

  1. Right click cmd.exe
  2. 'Run as administrator' (install will fail with access denied if you don't do it this way)
Open Command Prompt
  1. If you're prompted with 'Do you want to allow this app to make changes to your device?', click 'Yes'
user access control setting

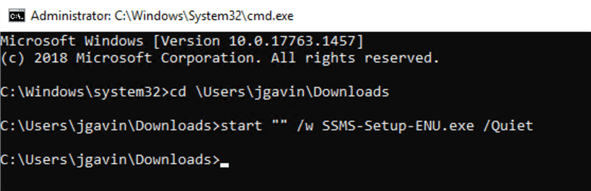

Use the 'cd' command to change to the directory where you downloaded SSMS-Setup-ENU.exe. For this example, I 'm opening the installer from my user's Downloads directory and installing it in the default install directory with the following commands.

cd \users\username\Downloads
start "" /w SSMS-Setup-ENU.exe /Quiet
install ssms via command line

When the command prompt returns, make sure there are no errors displayed on the screen and check the install log file under %TEMP%\SSMS

Create a SSMS Desktop Shortcut

The install is done, and we can create a desktop shortcut to SSMS.

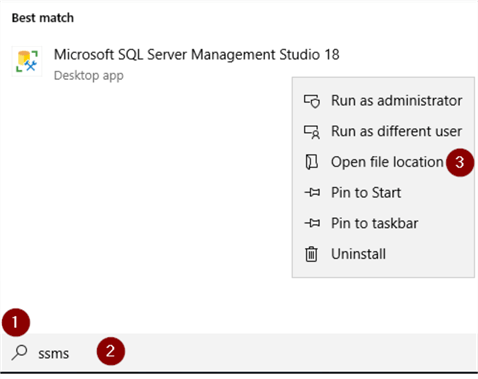

  1. Open Search
  2. Enter ssms
  3. 'Open file location'
Search for ssms

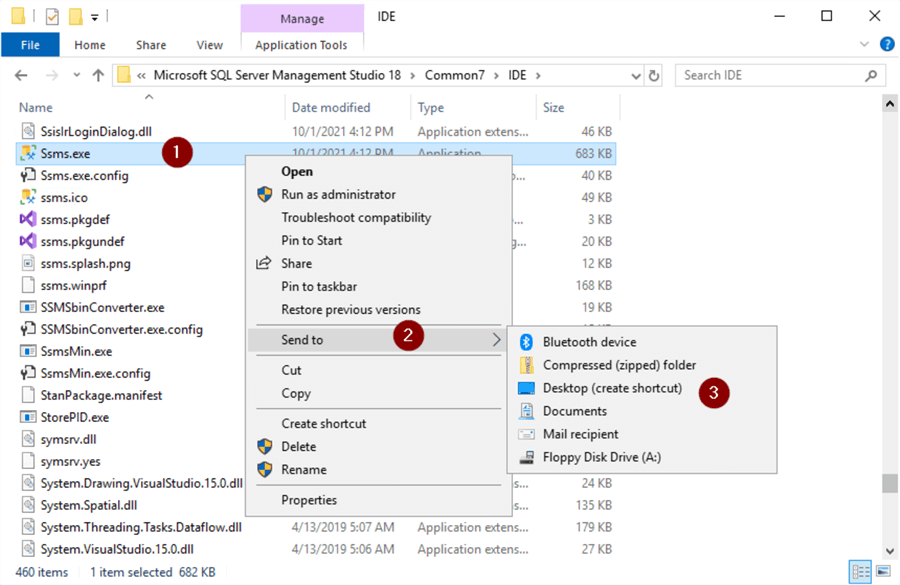

  1. Right click Ssms.exe
  2. 'Send to'
  3. 'Desktop (create shortcut)'
Create ssms Shortcut

We know it's a shortcut so let's rename it.

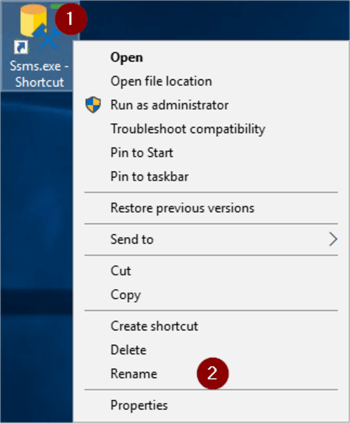

  1. Right click 'Ssms.exe Shortcut'
  2. Rename to something like 'SSMS' and hit Enter
Rename ssms Shortcut

Start SSMS and Connect to Server

  1. Double click the shortcut
ssms Shortcut

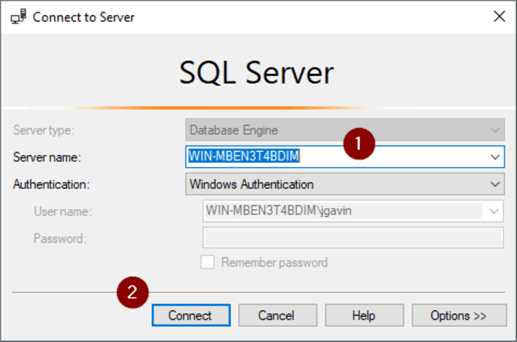

  1. Server name and authentication - enter server name and authentication information
  2. Click Connect
Connect to SQL Server

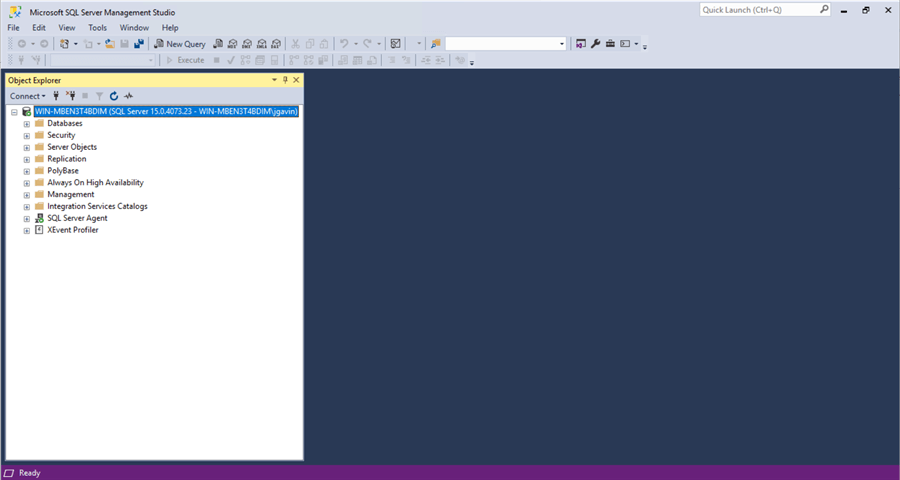

And you're brought to the main SSMS screen. If the Object Explorer windows doesn't open automatically simply go to View > Object Explorer or hit F8.

SSMS

In the Object Explorer you can connect to another server, and expand a server dropdown where you can access Databases, Security Objects, SQL Agent, and more.

Object Explorer

Upgrading SSMS

By default, SSMS will automatically check for updates when you start the application.

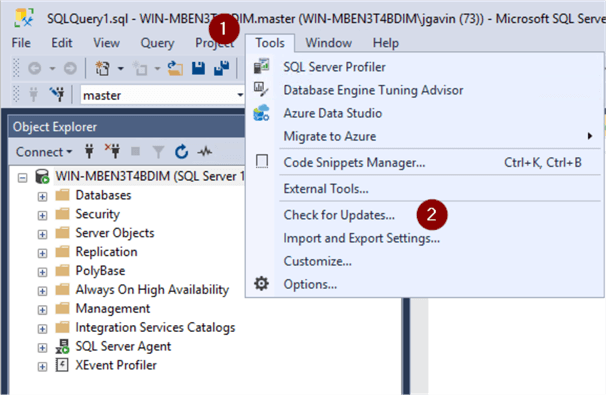

To manually check, or disable automatic checking:

  1. Tools
  2. Check for Updates…
ssms check for updates

If there is an update available, a link to the download site will be displayed.

It's unlikely you would want to disable automatic checking, but if you do simply uncheck 'Automatically check for updates for SQL Server Management Studio'.

ssms updates

One thing to note, when you install later versions of SSMS 18, you also install Azure Data Studio (ADS). While SSMS is geared toward database administration and development work, ADS is still suitable for administration, especially with some of the extensions for it, but is more geared toward development work.

Next Steps



Get Started Now - Click here to get your free 14 day trial of SolarWinds Database Insights




get scripts

next tip button



About the author
MSSQLTips author Joe Gavin Joe Gavin is from Greater Boston. He has held many roles in IT and is currently a SQL Server Database Administrator.

View all my tips


Article Last Updated: 2022-02-15

Comments For This Article




Wednesday, February 16, 2022 - 12:28:02 PM - Joe Gavin Back To Top (89800)
Good tips Curtis. I usually don't care about ADS being installed as I'm becoming a Jupyter Notebook fan but I can see not wanting to have it installed.

Wednesday, February 16, 2022 - 11:44:30 AM - Curtis Gregson Back To Top (89798)
SSMS automatically installs Azure Data Studio (ADS) now. Unfortunately SSMS uses the system installer version. I already have the User installer version (as recommended by MS) on my machine.
So... I never use the GUI install as there is no option to NOT install ADS. I always use the command line.
Further... you can add the switch to the install ... /Passive DoNotInstallAzureDataStudio=1. This will prevent ADS (system installer) from being installed.
For me.. I never like using the /Quiet switch for my own installs. I hate looking at a blinking cursor wondering what is going on and if it will finish (successfully?!?). I get the /Quiet switch for unattended installs for users who don't do this sort of thing... but not for me.

Finally... I do put a shortcut on the desktop (and my own taskbar menu), but I also click on the Advanced button of the shortcut properties and check the box to run the shortcut as an administrator. That way SSMS runs as an administrator. I've had too many issues running scripts (especially DDL scripts) or doing SSAS, SSRS, SSIS work in SSMS that fail and it turns out it was a permission issue.
