Power BI Personalization

By:   |   Comments   |   Related: > Power BI Formatting


What is Power BI Personalization and how can it be used to benefit end users?


As a Power BI report designer (and any report designer in general), one of those frustrating moments is when you complete a "fine" looking report, and then the end report consumer starts saying, "can you change this visual to that visual?" or "can you add a legend to this visual?" or "can you change XYZ?" Furthermore, often one report consumer, for example the CFO, likes to see his Power BI Dashboard with all Bar Charts; however, another user, for instance the COO, prefers to see Column charts used. Fortunately, Power BI now offers a feature for end users to customize many properties of a visual including changing the visual / chart type, adding or changing the fields used, or adjusting to tool tips that are displayed.

Let us see how we can use the personalization feature to enable and ultimately allow a report consumer to personalize their own Power BI Report. However, before we get into the examples, you need to be sure to download the latest version of Power BI desktop from here. Additionally, we will be using the WideWorldImportersDW database as a basis for our data sources; this database can be downloaded, if needed. If you need a refresher on bringing data into Power BI please see this tip.

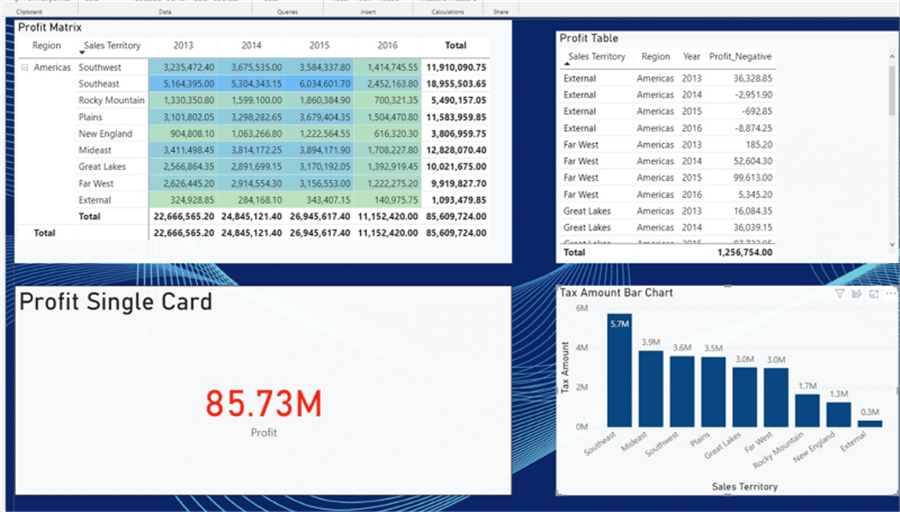

As a starting point, a simple set of data queries and a simple report is created. Specifically, the Dimension City, Dimension Customer, Dimension Date, and Fact Sales tables are brought in from the Wide World Importers database. Then as shown below, we add a matrix, a table, a card and a bar chart to the design grid.

simple report

To get started with personalization, two settings must be adjusted to start the process and set the report visuals up for personalization.

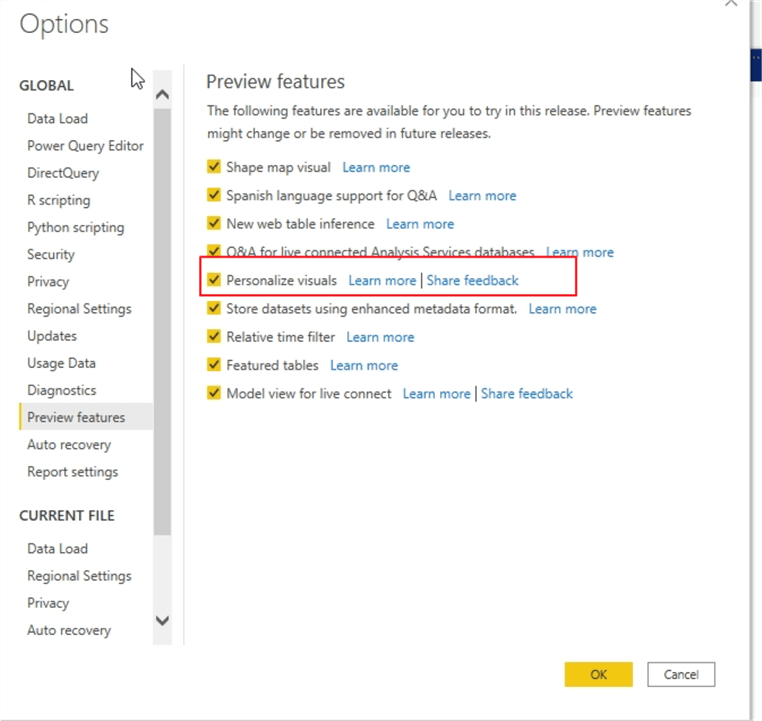

The first option is to turn on the Personalize Visual option by clicking the check box under Preview Features option (note that this feature may move to production and thus this property would no longer need to be checked). This option is turned on in the screen print below.

Preview Feature

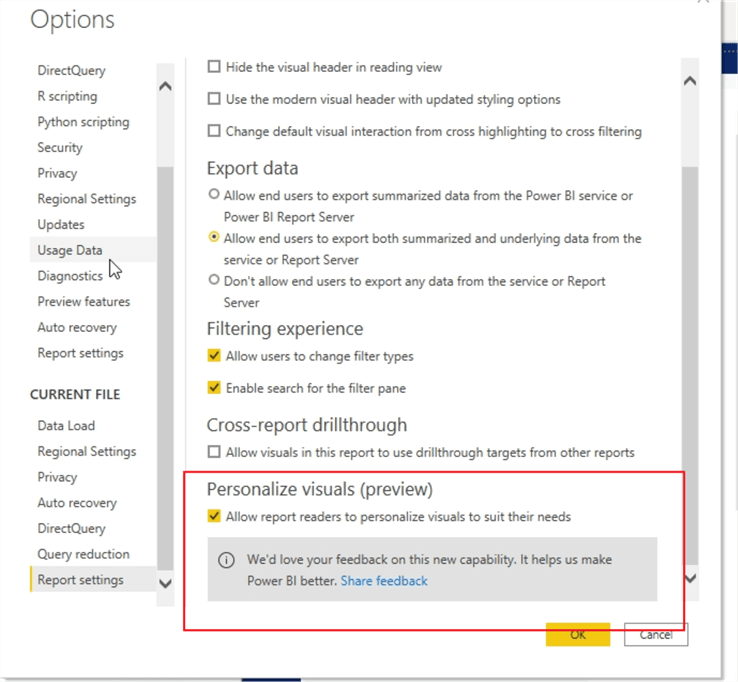

Similarly, under Options in the CURRENT FILE section, the Personalize Visuals property must also be checked to turn on this feature for the current PBIX file.

Personalize visual

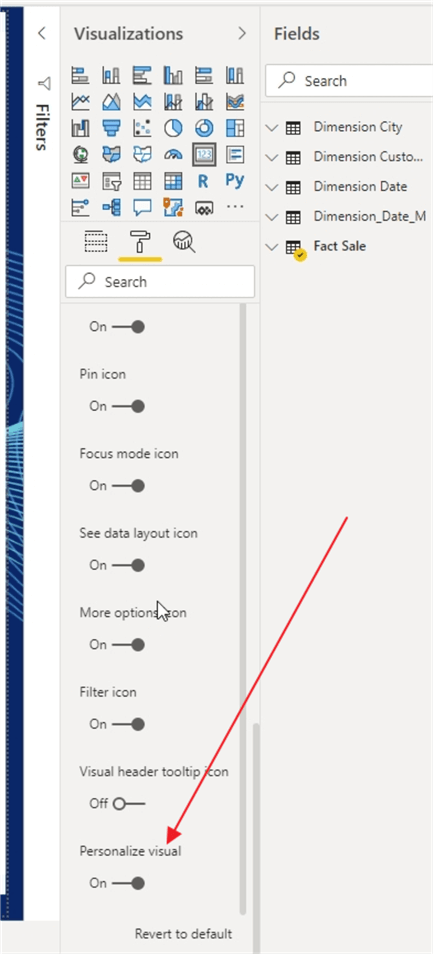

In addition to setting this option at the Report Level, each visual can be toggled on and off by adjusting, as shown below, noted setting under the Visual Header formatting option (paint brush button under visualizations).

Visual Header Settings

We are ready to move the Power BI Service where we show personalization in action. Thus, we must publish our Power BI Desktop file to the Power BI webservice.

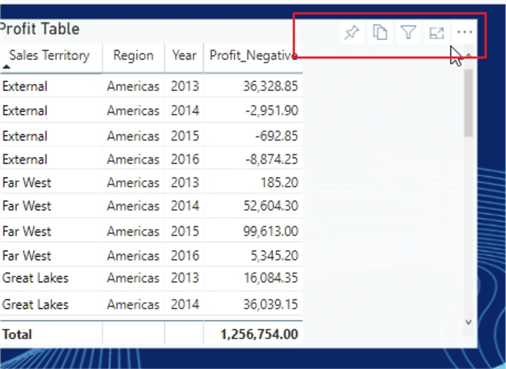

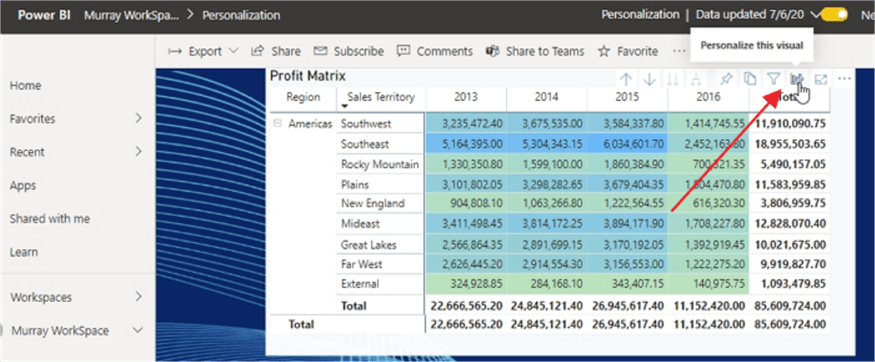

As shown below, on our newly published dashboard, one of the options in the upper right corner of the visual includes a new personalization button.

Personalization option

This button will not be available if personalization was turned off for the selected visual, as outlined in the previous section and screen print.

do not personalize visual option off

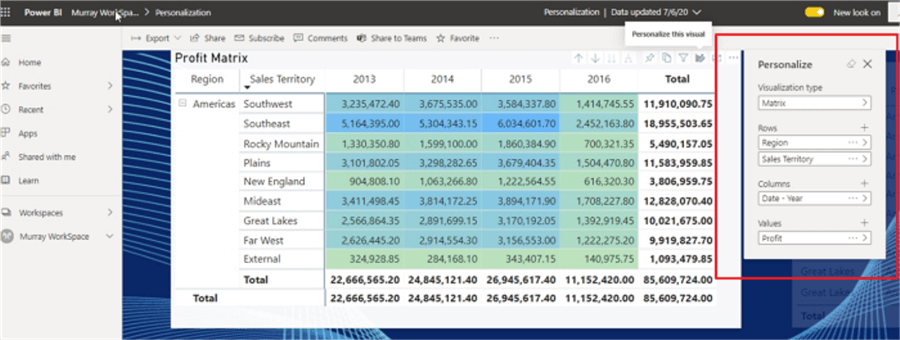

Now the power of personalization can be fully shown. Clicking on the personalization button in the visual header provides a pop out box that allows for adjusting various personalization options for the visual.

Personalization PopOut

The first adjustment that can be made is to change out the visual type. As displayed below, the visual type can be changed to any standard visual (custom visuals do not show up in the selection).

Change Visual type

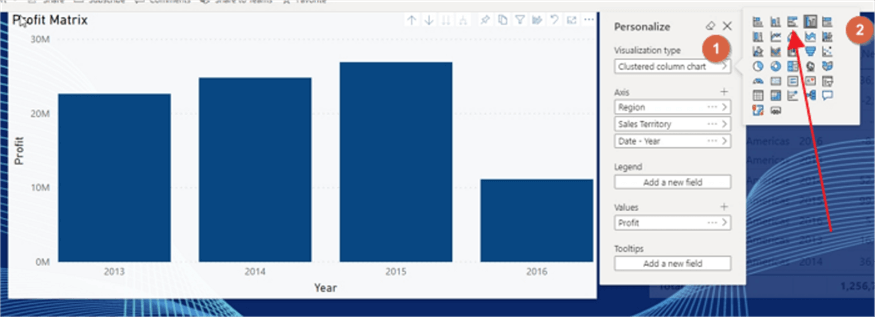

With the click of a button, the matrix is changed to a clustered column chart.

Clustered column chart

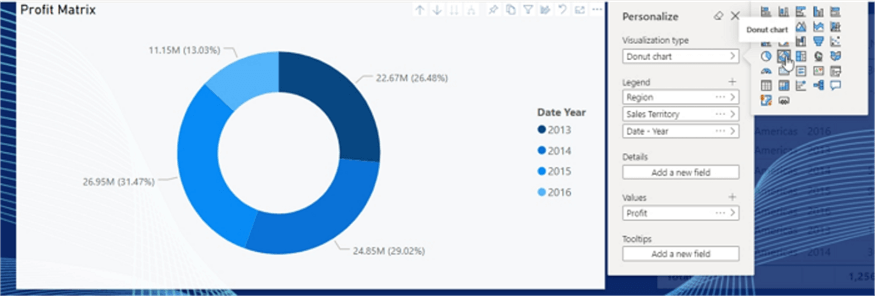

Likewise, I can easily test out several visuals by selecting each and reviewing the result.

Donut Chart.

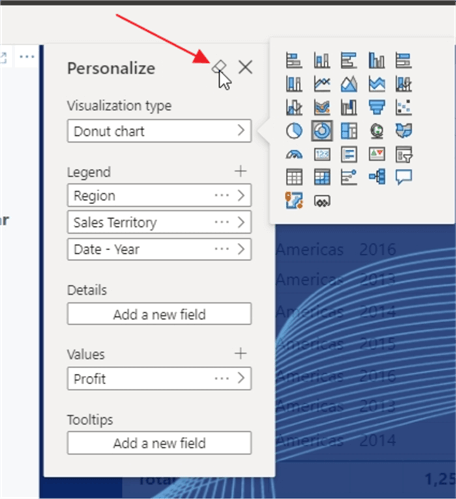

If I would like to go back to the original visual, the erase button clears any personalization.

Clear change

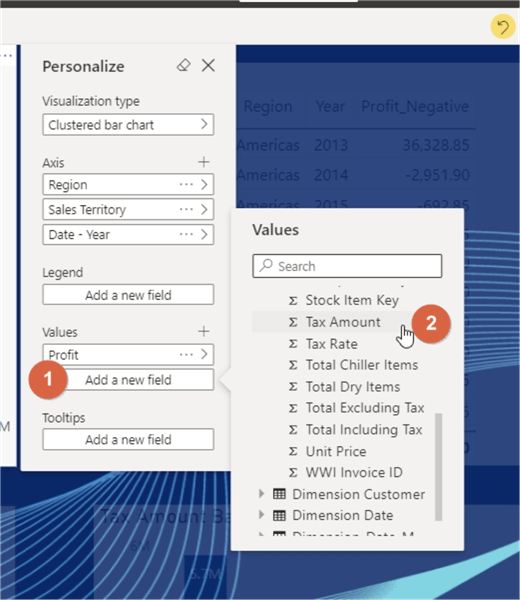

Not only can we change the visual type, but we can also change, add, or remove the fields included in the data set for the visual. For instance, using the clustered bar chart personalization, we can add Tax Amount as a new value.

Add Tax Amount

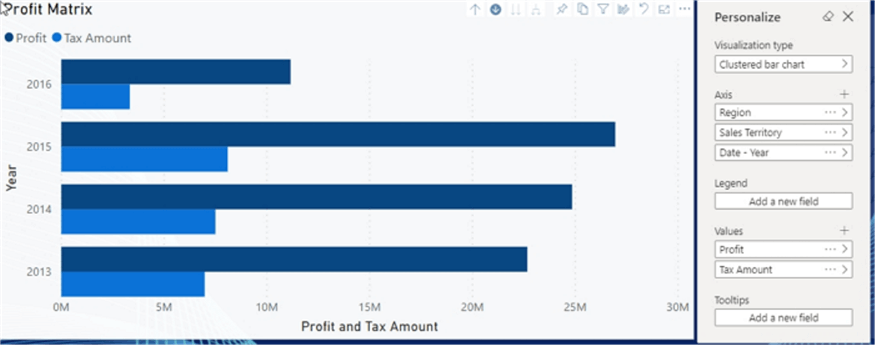

Now our visual shows both the tax amount along with the profit figure.

power bi personalization 013

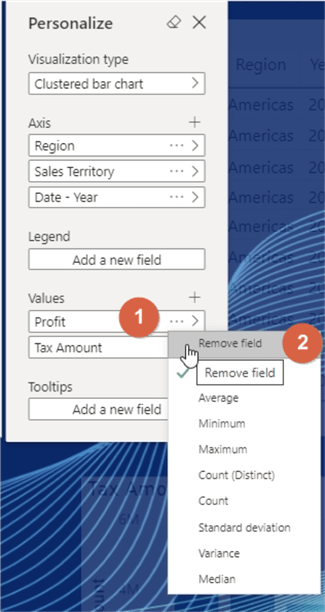

We could also remove the profit measure if desired by clicking on the 3-dot ellipse next to the measure name and selecting Remove field.

power bi personalization 014

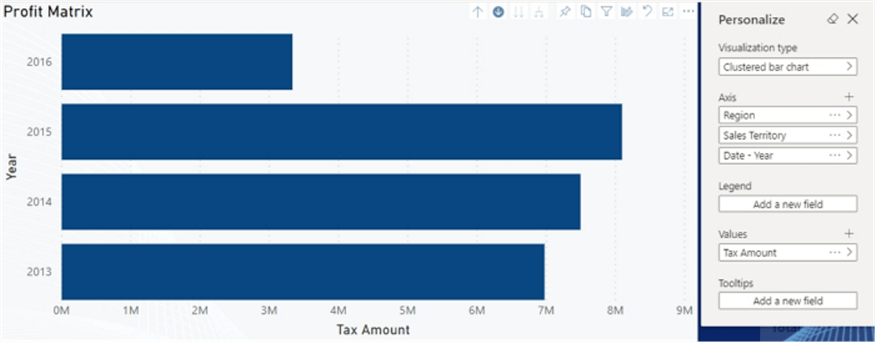

Now the visual just shows the tax amount.

Visual with just tax amount

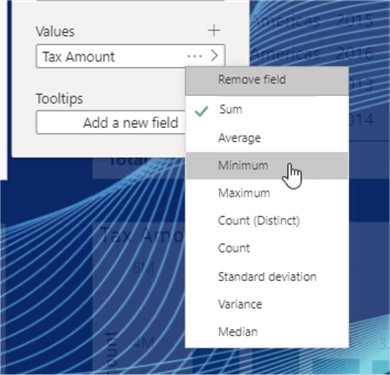

We could also change the measure aggregation to average, count, minimum, maximum, or several other various aggregations.

power bi personalization 016

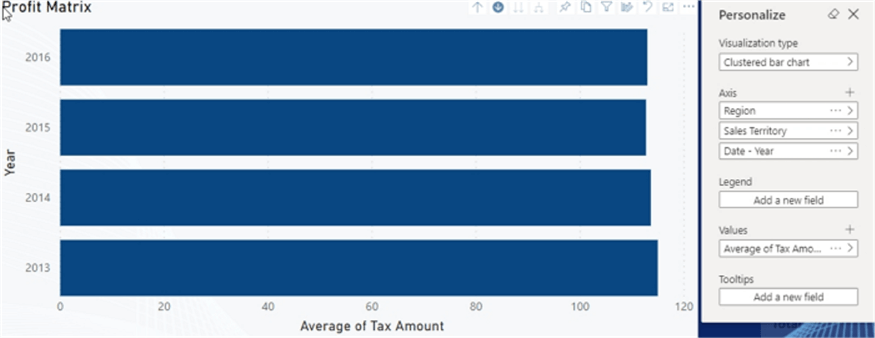

Now our visual is showing the average of the tax amount.

Average Tax Amount visual

As we make all these changes, you hopefully are also seeing the advantages and benefits of being sure your field names are appropriate and meaningful to the end dashboard consumers.

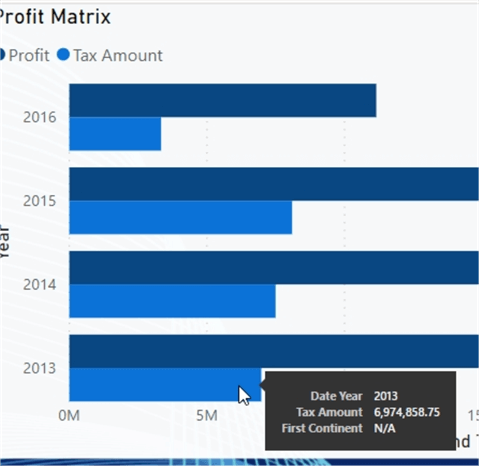

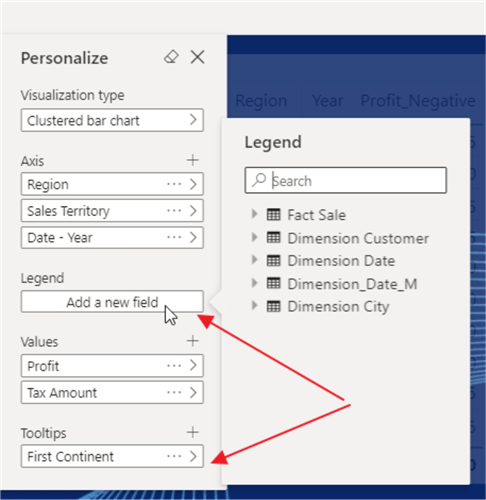

In a similar fashion to adding new fields and axis values noted above, we can also add fields to the legends and tool tips area.

Add Legends and Tooltips
Tool tip

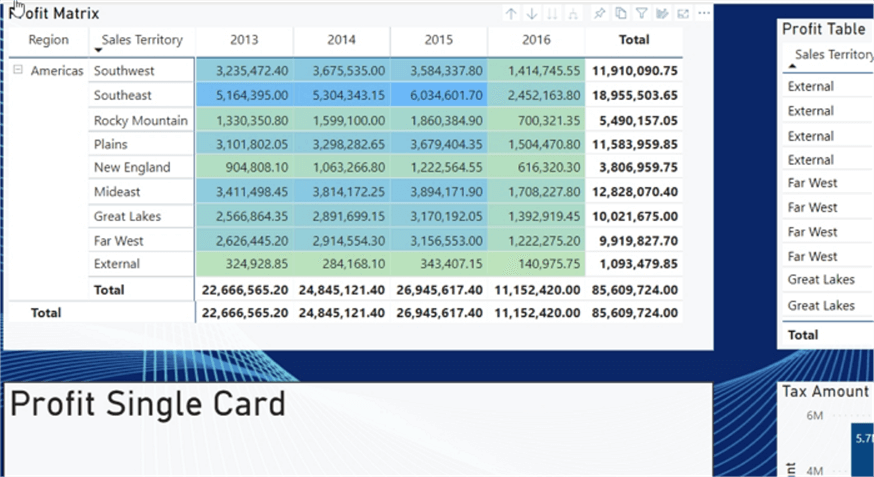

One thing to note, if you exit the report or even refresh the screen, any personalization to a visual will not be saved. Likewise, if you click on the Reset to default, the visual will go back to its original format.

Back to default visual.

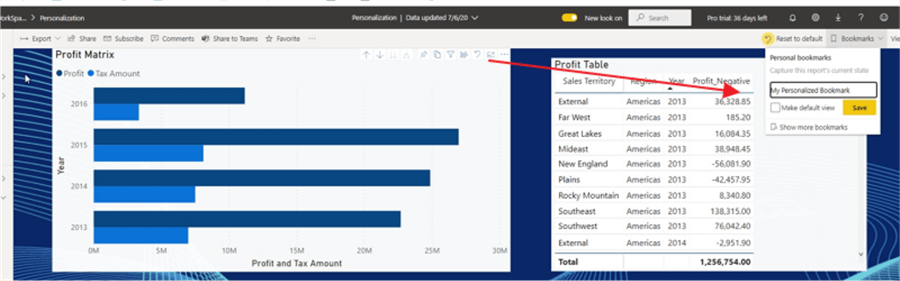

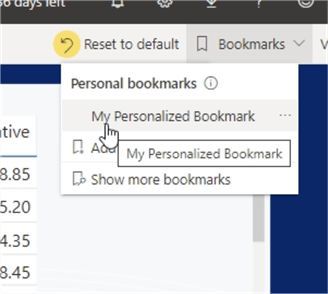

However, there are ways to save your changes for future review. One method is to use the Bookmarks functionality to save the current view of the report, as illustrated below.

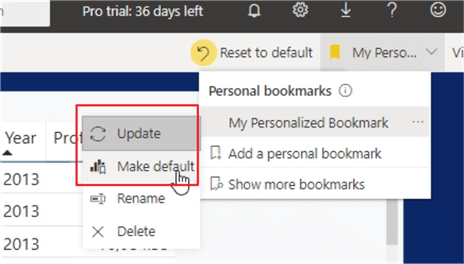

Now, after navigating to the report in the Power BI Service, the personalized version of the visual is saved (it would be saved for all visuals on the report if more than one was personalized – see this tip for details on bookmarks). Of course, as shown in the second screen print, a personal bookmark can be saved as the default view, so you would see the personalized visual(s) every time you navigate to this report.

Select Bookmark
power bi personalization 023

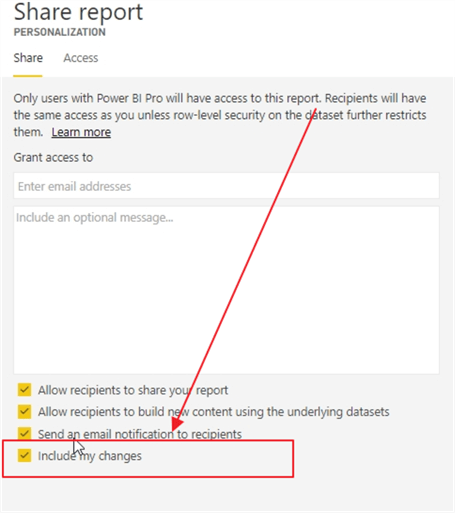

Finally, the report consumer can include his or her personalized visual(s) when sharing to other Power BI users who have access to the report.

power bi personalization 024

The personalization feature in Power BI is really escalating the self-service visualization feature list. By providing end report consumers the ability to change a visual and / or to change the fields included on a visual, Microsoft is providing significant amount of flexibility and time savings techniques to dashboard developers and dashboard consumers.

Next Steps

Learn more about Power BI in this 3 hour training course.

Click here to start the Power BI course
