Install Azure Data Studio on Linux systems

By:   |   Updated: 2022-08-10   |   Comments   |   Related: > Azure Data Studio


If you work with SQL Server on Linux, Azure Data Studio (ADS) is a perfect tool for development activities. It is a cross-platform tool and can be installed on Windows, Linux, and macOS. In this article, we look at how to install Azure Data Studio for RedHat, Ubuntu, and SUSE Linux systems.


Azure Data Studio is suitable for data professionals working with on-premises and cloud data platforms on Windows, macOS, and Linux. The Azure Data Studio for Linux install supports the following file formats for different Linux systems:

  • .deb
  • .rpm
  • .tar.gz

The supported Linux OS is Debian 9+, RHEL 7+, and Ubuntu 18.04+.

Let's explore the steps to install Azure Data Studio using each file format.

Install Azure Data Studio using a graphical method on Ubuntu

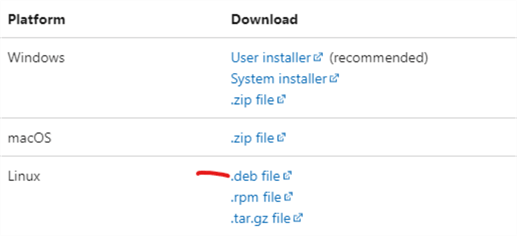

To install Azure Data Studio graphically, launch Ubuntu in graphical mode and download the DEB file version of ADS.

download ads

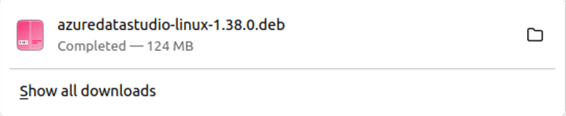

downloaded ads file

Once downloaded, click on the file azuredatastudio-linux-1.38.0.deb and choose software install as shown below.

open ads installer

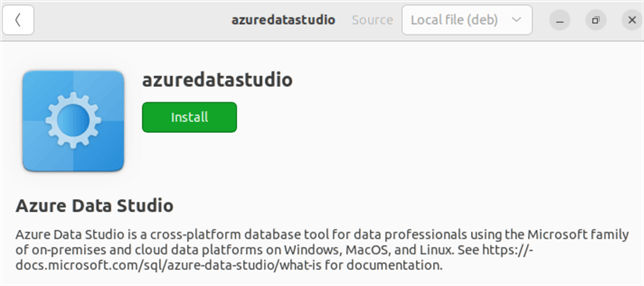

It opens the software installer page with Azure Data Studio. Click on the install button to install this cross-platform database tool.

install ads

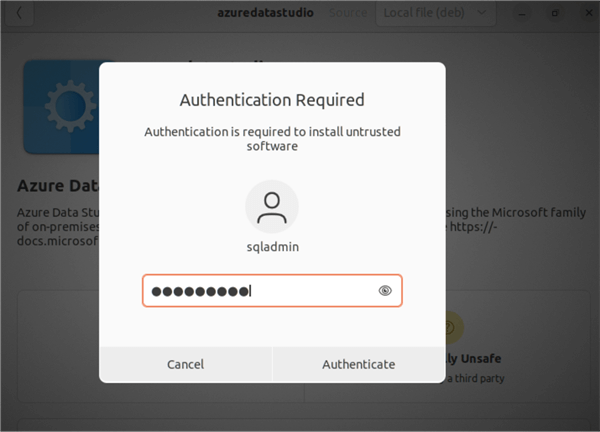

It requires administrator permissions for installing the software. Enter the credentials and click Authenticate.

enter authentication info for ads install

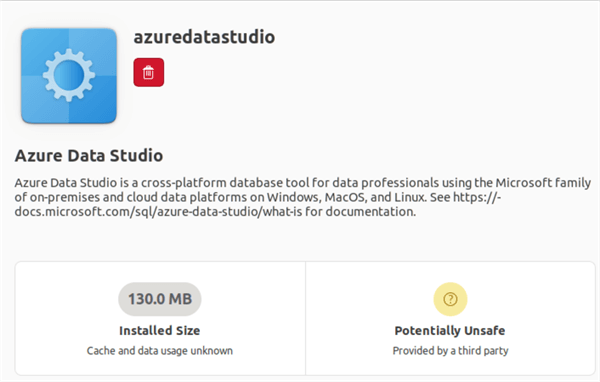

It installs Azure Data Studio on your Ubuntu server, and the installer page shows the installed size(~130 MB) and a delete button for uninstalling it.

ads install info

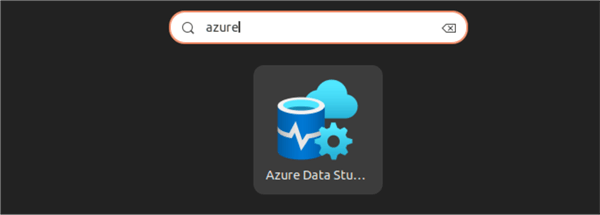

You can launch Azure Data Studio with the Azure Data Studio icon as shown below.

launch ads

The following screenshot shows the default landing page of Azure Data Studio. This welcome page has shortcuts to create connections, open a file, open a folder, and run a query.

azure data studio

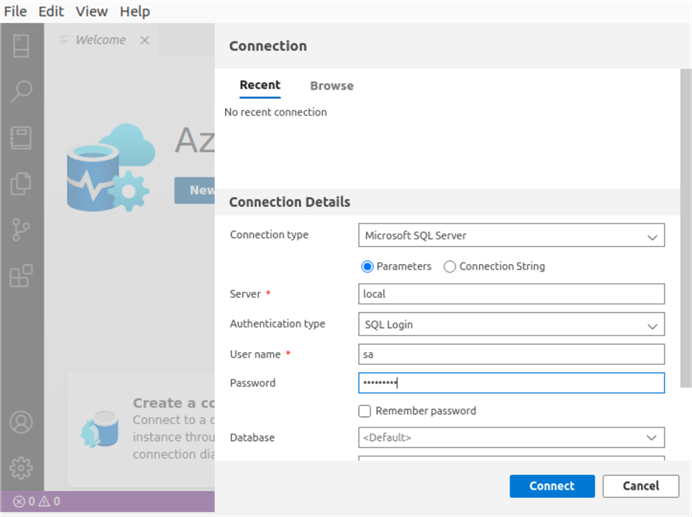

Click on create a connection for specifying the connection string for Microsoft SQL Server. For connection, select the server name and authentication type (Windows or SQL) with user credentials (in the case of SQL authentication). Optionally, you can specify a default database name for the SQL connection.

ads create connection

You can add features to the existing Azure Data Studio using extensions. These extensions are available in the marketplace.

azure data studio marketplace

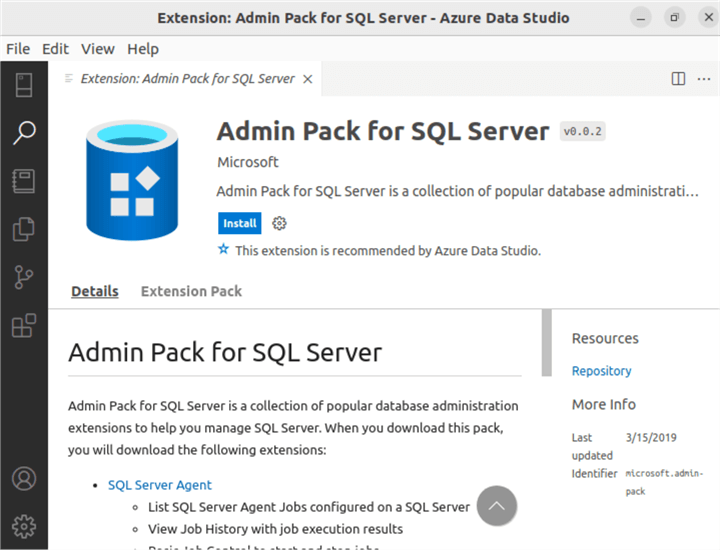

I recommend installing the extension "Admin Pack for SQL Server" for adding SQL Server tools for SQL Server Agent, Profiler, Import utility, and DACPAC wizard. Search the admin pack for SQL Server extensions and click on Install for configuring Azure Data Studio for additional functionality.

ads admin pack for sql server

Install with a .deb file

The Debian Software Package file(*.deb) is used mainly in Unix-based operating systems such as Ubuntu. To install ADS using .deb, use the following steps.

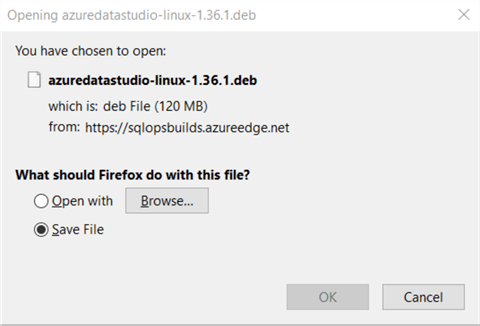

Step 1: Download the Azure Data Studio's latest version from this URL.

Download Azure Data Studio

Step 2: Launch the terminal and run the following command.

sudo dpkg -i ./Downloads/azuredatastudio-linux-1.36.1.deb

This will install Azure Data Studio and you can launch it using the command azuredatastudio.

Note: If ADS reports any missing dependencies, use the following command:

sudo apt-get install libunwind8

Install Azure Data Studio with a .rpm file

The Red Hat Package Manager file stores installation packages on Linux operating systems. You can follow the below steps for installing the latest ADS version using the .rpm file.

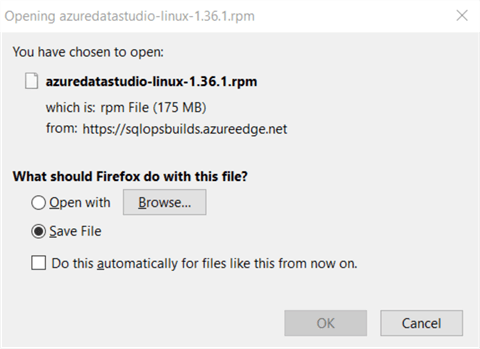

Step 1: Download the Azure Data Studio's latest version .rpm file from this URL.

Download the Azure Data Studio

Step 2: Extract and install ADS using the yum utility.

The following command extracts the ADS 1.36.1 RPM package and installs it on your system using the yum utility. If you have a different ADS version, change the relevant .rpm file name downloaded from Step 1.

yum install ./Downloads/azuredatastudio-linux-1.36.1.rpm

Step 3: Launch Azure Data Studio.

Run the command azuredatastudio to launch the Azure Data Studio and start using it.

Note: If ADS installation reports any missing dependencies, run the following command to fix it.

yum install libXScrnSaver

Install Azure Data Studio with a .tar.gz file

The tar.gz file is a compressed collection of files wrapped up into a single file. It helps keep track of a folder of files with a single file.

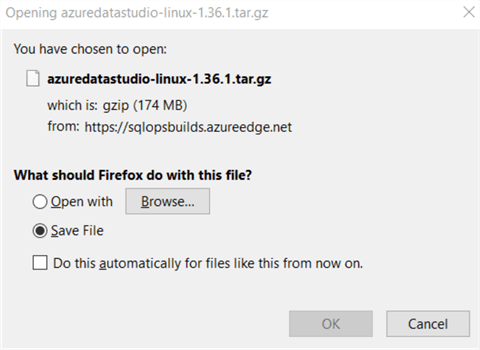

Step 1:Download the Azure Data Studio's latest version compressed tar.gz file from this URL.

Download the Azure Data Studio

Step 2: Extract and install the ADS with the downloaded .tar.gz file.

cp ~/Downloads/azuredatastudio-linux-1.36.1.tar.gz ~
tar -xvf ~/azuredatastudio-linux-1.36.1.tar.gz
echo 'export PATH="$PATH:~/azuredatastudio-linux-x64"' >> ~/.bashrc
source ~/.bashrc

Step 3: Launch Azure Data Studio.

Run the command azuredatastudio to launch the Azure Data Studio and start using it.

Note: If any missing dependencies issues are encountered, run the below apt-get install command to fix it.

sudo apt-get install libxss1 libgconf-2-4 libunwind8

Azure Data Studio on Windows Subsystem for Linux

Azure Data Studio on Windows subystem for Linux is also available.

Step 1: Install Windows Azure Data Studio.

Install Windows Azure Data Studio by following this article Azure Data Studio(ADS) – Download, Installation, and Configuration on Windows.

Step 2: Launch Azure Data Studio.

You can launch Azure Data Studio from the Windows Subsystem at the Linux command prompt. ADS installs in the AppData folder by default, so you can navigate to /AppData/Local/Programs/Azure Data Studio/azuredatastudio.exe to launch Azure Data Studio.
