Write Federated U-SQL Queries to Join Azure Data Lake Store Files to Azure SQL DB


By:   |   Updated: 2019-01-24   |   Comments   |   Related: More > Azure

Storage and High Availability Options for SQL Server in the Cloud

Free MSSQLTips Webinar: Storage and High Availability Options for SQL Server in the Cloud

This webinar will cover best practices for optimizing cloud storage and cost, how to leverage the cloud for disaster recovery, availability options and requirements for SQL Server and key factors to consider in your selection.


Problem

With the dawn of a new era known as the Big Data revolution, there has come an increasing need and demand to join incoming hot big data from either IoT devices or Social Media feeds that reside in Azure Data Lake to data-warehouses and data-marts that reside in Azure SQL DB for further processing, merging and analysis. This article aims at solving and bridging that gap with a real-world example.

Solution

In this article I will create a solution which will join files that reside in Azure Data Lake Store Azure with Azure SQL DB Data using federated U-SQL queries in Azure Data Lake analytics.

U-SQL is a powerful language which allows for querying big data rather quickly. For external systems, such as Microsoft Azure SQL Database, this can be achieved with federated queries against data sources. To query these external data sources, a data source object will need to be created and then referenced that abstracts the connection information as well as information about its capabilities to execute query expressions passed and translated from U-SQL to the its local query engine.

The following diagram illustrates the architectural solution that we will be executing:

web logs

Prerequisites

There are a few pre-requisites that must be set up:

  • First, you will need an Azure Subscription which will be used in the PowerShell login script. If you do not have an Azure account, you can navigate to portal.azure.com to sign up for one.
  • Next, you will need both an Azure Data Lake Analytics (ADLA) and Azure Data Lake Store (ADLS). The Data Files will reside in ADLS and ADLA will be the driving analytics engine which will process the large data sets and join them to Azure SQL DB. In the Azure portal, create a Data Lake Analytics Resource. Note that you can create a Data Lake Storage Account at the same time within the same blade as seen in the illustration below.
new data lake analytics

You'll also need either an Azure SQL Database (ASQLDB) or Azure SQL Data warehouse (ASQLDWH) with SQL login/password. Data from our Datamart or Datawarehouse will reside here. For the purpose of this article, let's assume we are using ASQLDB so we'll go ahead and create one.

azure
  • Azure PowerShell: We will execute some federated query setup routines using PowerShell.
  • Read/Execute Permissions on your ADLS (data level) to be able to create the Catalog Secret
    • Navigate to ADLS in Azure Portal
    • Click Data Explorer
    • Click Access
    • Validate you have Read/Execute permissions.
access
  • Allow IP range in the ASQLDB server firewall for the ADLA services that fire the U-SQL queries
    • Navigate to your ASQLDB server in Azure Portal
    • Click Settings
    • Click Firewall
    • Create new rule with range 25.66.0.0 to 25.66.255.255

This is typically the safest range to utilize, however you can run the following PowerShell script to find you ADLA region and then reference Microsoft's region-specific ranges in the event that the ranges have changed:

$DataLakeAnalyticsAccount = "rlesteveadla";
(Get-AzureRmDataLakeAnalyticsAccount -Name $DataLakeAnalyticsAccount).Location;
firewall settings

Setting Up ADLA Federated Querying

  • Create the ADLA Database using a U-SQL query:
DROP DATABASE IF EXISTS IoTADLADatabase;
CREATE DATABASE IoTADLADatabase;
data explorer
  • Create a credential for a catalog specifying host and port. The New-AzureRmDataLakeAnalyticsCatalogCredential cmdlet creates a new credential to use in an Azure Data Lake Analytics catalog for connecting to external data sources.
#Login (login pop up appears)
Login-AzureRmAccount
#Show your available Azure Subscriptions
Get-AzureRmSubscription
#Connect to the Azure Subscription in which your ADLA Database exists
Set-AzureRMContext -SubscriptionId 00000000-0000-0000-0000-000000000000

New-AzureRmDataLakeAnalyticsCatalogCredential -AccountName "rlesteveadla" `
-DatabaseName "IoTADLADatabase" `
-CredentialName "IoTDbCred" `
-Credential (Get-Credential) `
-DatabaseHost "lestevesqlserver.database.windows.net" -Port 1433;

(Note that while creating the credential, ensure that you are referencing the correct port for the SQL Server otherwise there will be connection issues when we attempt to create the external data source in the next step)

E_COSMOS_USER_GENERIC: User Error: Sql command failed with an error that U-SQL considers unrecoverable. Exception Code: 10060 Original exception: A network-related or instance-specific error occurred while establishing a connection to SQL Server. The server was not found or was not accessible. Verify that the instance name is correct and that SQL Server is configured to allow remote connections. (provider: TCP Provider, error: 0 - A connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond.)

To remove the credential, run the following PowerShell Script and then re-create it using the previously defined step:

Remove-AzureRmDataLakeAnalyticsCatalogCredential -AccountName "rlesteveadla" `
                      -DatabaseName "IoTADLADatabase" `
                      -Name "IoTDbCred"

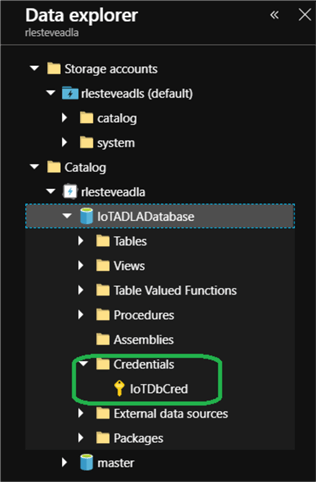

Once the credential is created correctly, it will appear under Credentials:

data explorer

Create Data Source in ADLA Database with a reference to the ASQLDB using the U-SQL query below:

// Create External Data source on AZURESQLDB
USE DATABASE IoTADLADatabase;

CREATE DATA SOURCE IF NOT EXISTS lesteveasqldbDataSource FROM AZURESQLDB WITH

( PROVIDER_STRING = "Database=lesteveasqldb;Trusted_Connection=False;Encrypt=True"
       , CREDENTIAL = IoTDbCred
       , REMOTABLE_TYPES = (bool, byte, sbyte, short, ushort, int, uint, long, ulong, decimal, float, double, string, DateTime)
       );

Once the data source is created, it will appear under External Data Sources:

data explorer

Create an External Table in ADLA Database based on the Data Source using the U-SQL query below:

// CREATE EXTERNAL TABLE
// FROM EXTERNAL ASQL_CUSTOMER LOCATION "SalesLT.Customer"
USE DATABASE IoTADLADatabase;

CREATE EXTERNAL TABLE Customer(
 [CustomerID] int,
 [NameStyle] bool,
 [Title] string,
 [FirstName] string,
 [MiddleName] string,
 [LastName] string,
 [Suffix] string,
 [CompanyName] string,
 [SalesPerson] string,
 [EmailAddress] string,
 [Phone] string,
 [PasswordHash] string,
 [PasswordSalt] string,
 [rowguid] Guid,
 [ModifiedDate] DateTime
) FROM lesteveasqldbDataSource LOCATION "SalesLT.Customer";

I use this conversion table to convert my T-SQL to U-SQL data types after I do a script table as create to new query: (Note: Remember to mark nullable T-SQL fields with ‘?' for best practice T-SQL to U-SQL conversions. Also note that Nullable types don't apply to reference types such as string.)

T-SQL Data Type U-SQL Data Type
bigint long
binary byte[]
bit bool
char string
date DateTime
datetime DateTime
datetime2 DateTime
datetimeoffset DateTime
decimal decimal
FILESTREAM attribute byte[]
float double
image byte[]
int int
money decimal
nchar string
ntext string
numeric decimal
nvarchar string
real float
rowversion byte[]
smalldatetime DateTime
smallint short
smallmoney decimal
sql_variant byte[]
text string
time DateTime
timestamp byte[]
tinyint byte
uniqueidentifier Guid
varbinary byte[]
varchar string
xml string

U-SQL supports the following nullable types:

byte?
sbyte?
int?
uint?
long?
ulong?
float?
double?
decimal?
short?
ushort?
bool?
Guid?
DateTime?
char?

After the External table is created, it will appear under Tables:

data explorer

Query the federated external ASQLDB table and output result to file using the U-SQL query below:

USE DATABASE IoTADLADatabase;

@query =
SELECT
   CustomerID,
   NameStyle,
   Title,
   FirstName,
   MiddleName,
   LastName,
   Suffix,
   CompanyName,
   SalesPerson,
   EmailAddress,
   Phone,
   PasswordHash,
   PasswordSalt,
   rowguid,
   ModifiedDate
FROM dbo.Customer;
OUTPUT @query
TO "/Output/file.csv"
USING Outputters.Csv();

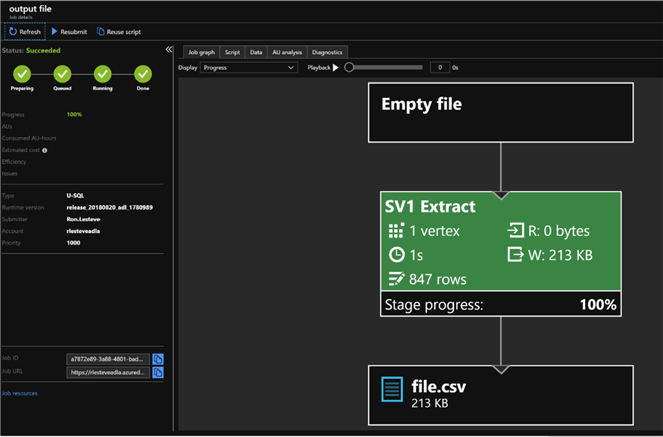

Once the query completes successfully, we can see that the newly generated output file contains 847 rows.

empty file

Sure enough, the count of 847 matches our ASQL DB Customer Table count as well:

customer id

Joining Files in ADLS with Data in ASQLDB

Now that we have successfully run a test federated U-SQL query against the ASQLDB, we can now write a U-SQL query to join a file from ADLS to data in ASQLDB by using a common join key.

Let's assume that millions of records of Sales Order Header Data is coming in to our Azure Data Lake Store on a daily basis and will need to be processed further with data residing in the data warehouse in ASQLDB. To keep this last exercise simple, let's assume that there are 32 Sales Order Header records residing in ADLS. Our column of interest in this data set is CustomerID which we want to join to CustomerID from the External ASQL Customer Table to get us pertinent customer detail that we need.

USE DATABASE IoTADLADatabase;

//
// factorderheader - Input File
//

@factorderheader =
EXTRACT
    SalesOrderID int,
    RevisionNumber byte,
    Status byte,
    SalesOrderNumber string,
    PurchaseOrderNumber string,
    AccountNumber string,
    CustomerID int,
    ShipToAddressID int?,
    BillToAddressID int?,
    ShipMethod string,
    CreditCardApprovalCode string,
    SubTotal decimal,
    TaxAmt decimal,
    Freight decimal,
    TotalDue decimal,
    Comment string,
    rowguid Guid
FROM "/Output/SalesOrderHeader.csv"
USING Extractors.Csv(skipFirstNRows:1);

//
// customerdetail - Input File
//

@customerquery =
SELECT
   CustomerID,
   NameStyle,
   Title,
   FirstName,
   MiddleName,
   LastName,
   Suffix,
   CompanyName,
   SalesPerson,
   EmailAddress,
   Phone,
   PasswordHash,
   PasswordSalt,
   rowguid,
FROM dbo.Customer;

//
// Result Set - Join Logic
//

@result_set =
SELECT
      o.SalesOrderID,
      o.RevisionNumber,
      o.Status,
      o.SalesOrderNumber,
      o.PurchaseOrderNumber,
      o.AccountNumber,
      o.CustomerID,
      o.ShipToAddressID,
      o.BillToAddressID,
      o.ShipMethod,
      o.CreditCardApprovalCode,
      o.SubTotal,
      o.TaxAmt,
      o.Freight,
      o.TotalDue,
      o.Comment,
      c.NameStyle,
      c.Title,
      c.FirstName,
      c.MiddleName,
      c.LastName,
      c.Suffix,
      c.CompanyName,
      c.SalesPerson,
      c.EmailAddress,
      c.Phone
FROM @factorderheader AS o
    LEFT JOIN
            @customerquery AS c
                   ON o.CustomerID == c.CustomerID;


//
// Customer Detail - Output File
//

OUTPUT @result_set
TO "/Output/CustOrderDetail.csv"
USING Outputters.Csv(outputHeader: true);

As we can see from the job graph, the job executed successfully and output 32 rows in the combined output file.

sales order header

Based on the output file, we can see that we were able to successfully join Sales Order Header Data in ADLS (Azure Data Lake Store) with Customer Detail Data in ASQLDB (Azure SQL DB) on a common join key (CustomerID) and this was achieved by Federated Queries that we set up and ran in ADLA (Azure Data Lake Analytics).

file preview
